Le Tutoriel de Android Phone Call

  1. Android Phone Call

1. Android Phone Call

Dans Android, vous pouvez facilement passer un appel à partir de votre application en créant une Intent implicite ACTION_CALL et l'envoyer au système pour demander d'ouvrir l'application appelante disponible sur le système.
Intent callIntent = new Intent(Intent.ACTION_CALL);
callIntent.setData(Uri.parse("tel:" + phoneNumber));

startActivity(callIntent);

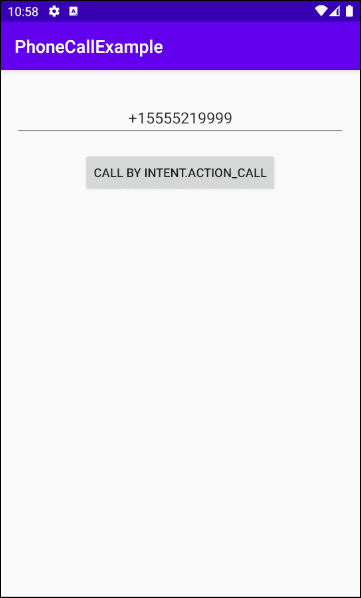

Exemple d'aperçu:
Sur Android Studio, créez un projet:
  • File > New > New Project > Empty Activity
    • Name: PhoneCallExample
    • Package name: org.o7planning.phonecallexample
    • Language: Java
Votre application a besoin d'une autorisation pour effectuer des appels, le code suivant doit donc être ajouté au fichier AndroidManifest.xml:
<uses-permission android:name="android.permission.CALL_PHONE" />
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="org.o7planning.phonecallexample">

    <uses-permission android:name="android.permission.CALL_PHONE" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>
De plus, depuis Android 6.0 (API Level 23), une application veut passer un appel, elle doit être autorisée par l'utilisateur, donc dans l'application, vous devez avoir un traitement supplémentaire (voir dans l'exemple de code).

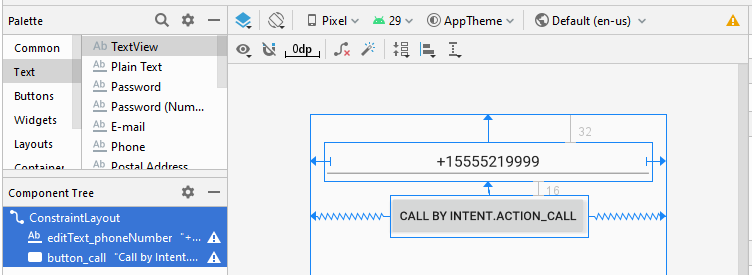

L'interface de l'application:
activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">


    <EditText
        android:id="@+id/editText_phoneNumber"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="32dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:ems="10"
        android:gravity="center"
        android:inputType="phone"
        android:text="+15555219999"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Button
        android:id="@+id/button_call"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="16dp"
        android:text="Call by Intent.ACTION_CALL"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/editText_phoneNumber" />

</androidx.constraintlayout.widget.ConstraintLayout>
MainActivity.java
package org.o7planning.phonecallexample;


import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;

import android.Manifest;
import android.annotation.SuppressLint;
import android.content.Intent;
import android.content.pm.PackageManager;
import android.net.Uri;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {

    private static final int MY_PERMISSION_REQUEST_CODE_CALL_PHONE = 555;

    private static final String LOG_TAG = "AndroidExample";

    private EditText editTextPhoneNumber;
    private Button buttonCall;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        this.editTextPhoneNumber = (EditText) this.findViewById(R.id.editText_phoneNumber);
        this.buttonCall = (Button) this.findViewById(R.id.button_call);

        this.buttonCall.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                askPermissionAndCall();
            }
        });
    }

    private void askPermissionAndCall() {

        // With Android Level >= 23, you have to ask the user
        // for permission to Call.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.M) { // 23

            // Check if we have Call permission
            int sendSmsPermisson = ActivityCompat.checkSelfPermission(this,
                    Manifest.permission.CALL_PHONE);

            if (sendSmsPermisson != PackageManager.PERMISSION_GRANTED) {
                // If don't have permission so prompt the user.
                this.requestPermissions(
                        new String[]{Manifest.permission.CALL_PHONE},
                        MY_PERMISSION_REQUEST_CODE_CALL_PHONE
                );
                return;
            }
        }
        this.callNow();
    }

    @SuppressLint("MissingPermission")
    private void callNow() {
        String phoneNumber = this.editTextPhoneNumber.getText().toString();

        Intent callIntent = new Intent(Intent.ACTION_CALL);
        callIntent.setData(Uri.parse("tel:" + phoneNumber));
        try {
            this.startActivity(callIntent);
        } catch (Exception ex) {
            Toast.makeText(getApplicationContext(),"Your call failed... " + ex.getMessage(),
                    Toast.LENGTH_LONG).show();
            ex.printStackTrace();
        }
    }


    // When you have the request results
    @Override
    public void onRequestPermissionsResult(int requestCode,
                                           String permissions[], int[] grantResults) {

        super.onRequestPermissionsResult(requestCode, permissions, grantResults);
        //
        switch (requestCode) {
            case MY_PERMISSION_REQUEST_CODE_CALL_PHONE: {

                // Note: If request is cancelled, the result arrays are empty.
                // Permissions granted (CALL_PHONE).
                if (grantResults.length > 0
                        && grantResults[0] == PackageManager.PERMISSION_GRANTED) {

                    Log.i( LOG_TAG,"Permission granted!");
                    Toast.makeText(this, "Permission granted!", Toast.LENGTH_LONG).show();

                    this.callNow();
                }
                // Cancelled or denied.
                else {
                    Log.i( LOG_TAG,"Permission denied!");
                    Toast.makeText(this, "Permission denied!", Toast.LENGTH_LONG).show();
                }
                break;
            }
        }
    }

    // When results returned
    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);

        if (requestCode == MY_PERMISSION_REQUEST_CODE_CALL_PHONE) {
            if (resultCode == RESULT_OK) {
                // Do something with data (Result returned).
                Toast.makeText(this, "Action OK", Toast.LENGTH_LONG).show();
            } else if (resultCode == RESULT_CANCELED) {
                Toast.makeText(this, "Action Cancelled", Toast.LENGTH_LONG).show();
            } else {
                Toast.makeText(this, "Action Failed", Toast.LENGTH_LONG).show();
            }
        }
    }
}
