Le Tutoriel de Android Wifi Scanning

  1. Android Wi-Fi
  2. Example de WifiManager

1. Android Wi-Fi

Sous Android, Wi-Fi est un protocole de réseau sans fil (Wireless Network Protocol), qui permet aux appareils de se connecter à Internet ou de connecter des appareils pour échanger des données.
Plus précisément, Android fournit Wi-Fi API, des applications qui peuvent utiliser cette API pour gérer tous les aspects liés à la connectivité Wifi, comme la recherche de réseaux Wifi actuels, l'ajout, Enregistrez, supprimez les connexions Wifi et gérez les données échangées entre les appareils.
En utilisant Wi-Fi API dans votre application, vous pouvez exécuter les fonctions suivantes:
  • Scannez (scan) pour rechercher les réseaux Wifi disponibles dans une plage.
  • Autorisez l'appareil à se connecter à Internet.
  • Connectez-vous à d'autres appareils via Service Discovery (Explorez les services).
  • Gérez la liste des réseaux configurés.
  • Gérez plusieurs connexions.
À partir d'Android 10.0 (API Level 29), vous ne pouvez pas utiliser Wi-Fi API pour activer / désactiver (enable/disable) le Wifi du système, ce qui signifie que si vous souhaitez activer / désactiver le Wifi, vous devez utiliser la fonction disponibilité du système d'exploitation.
La politique de confidentialité relative à l'utilisation de Wi-Fi API pour activer / désactiver le Wifi a changé plusieurs fois sur différentes versions d'Android. Détail:
Android Level
Politique de confidentialité
Level 1 ==> Level 22
(Android < 6.0)
android.permission.CHANGE_WIFI_STATE doit être ajouté à AndroidManifest.xml.
Level 23 ==> Level 28
(Android 6.0 - 9.x)
Android.permission.CHANGE_WIFI_STATE doit être ajouté à AndroidManifest.xml, et votre application doit demander à l'utilisateur la permission d'activer / désactiver le Wifi du système.
Level 29+
(Android 10.0+)
Interdisez l'utilisation de Wi-Fi API pour activer / désactiver le Wifi du système.
* AndroidManifest.xml *
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
WifiManager wifiManager = (WifiManager)getApplicationContext().getSystemService(Context.WIFI_SERVICE);

wifiManager.setWifiEnabled(true); // Enable Wifi

wifiManager.setWifiEnabled(false); // Disable Wifi
Dans Android 10+ (API Level 29+), la méthode setWifiEnabled(boolean) ne fonctionne plus.
Pour obtenir l'état de Wifi, vous devez ajouter android.permission.ACCESS_WIFI_STATE à AndroidManifest.xml:
* AndroidManifest.xml *
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
WifiManager wifiManager = (WifiManager)getApplicationContext().getSystemService(Context.WIFI_SERVICE);
int state = wifiManager.getWifiState();
String statusInfo = "Unknown";

switch (state)  {
    case WifiManager.WIFI_STATE_DISABLING:
        statusInfo = "Disabling";
        break;
    case WifiManager.WIFI_STATE_DISABLED:
        statusInfo = "Disabled";
        break;
    case WifiManager.WIFI_STATE_ENABLING:
        statusInfo = "Enabling";
        break;
    case WifiManager.WIFI_STATE_ENABLED:
        statusInfo = "Enabled";
        break;
    case WifiManager.WIFI_STATE_UNKNOWN:
        statusInfo = "Unknown";
        break;
    default:
        statusInfo = "Unknown";
        break;
}
Scannez (scan) pour rechercher les réseaux actuels:
WifiManager wifiManager = (WifiManager)getApplicationContext().getSystemService(Context.WIFI_SERVICE);
// Get List of Available Wifi Networks
List<ScanResult> availNetworks = wifiManager.getScanResults();

if (availNetworks.size() > 0) {

    // Get Each network detail
    for (int i=0; i< availNetworks.size();i++) {
        // ...
    }
}
La politique de confidentialité actuelle pour scanner des réseaux actuels varie également d'une version Android à l'autre:
Android API Level
La politique de confidentialité
Level 1 ==> Level 22
(Android < 6.0)
android.permission.ACCESS_COARSE_LOCATION doit être ajouté à AndroidManifest.xml.
Level 23+
(Android 6.0+)
android.permission.ACCESS_COARSE_LOCATION doit être ajouté à AndroidManifest.xml,dans le même temps, votre application doit demander à l'utilisateur la permission de scanner (scan) les réseaux actuels.
* AndroidManifest.xml *
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
  • Le Tutoriel de Android Wifi Direct P2P

2. Example de WifiManager

Dans cet exemple, je vais vous guider pour utiliser WifiManager pour récupérer l'état de Wifi, scanner le réseau actuel, noter les détails de chaque réseau trouvé et vous connecter à un certain réseau dans la liste.

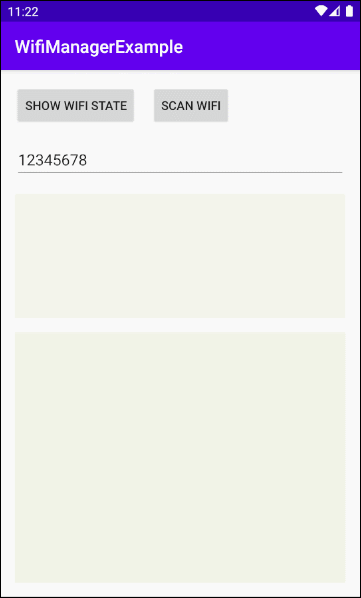

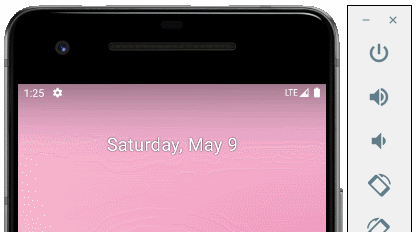

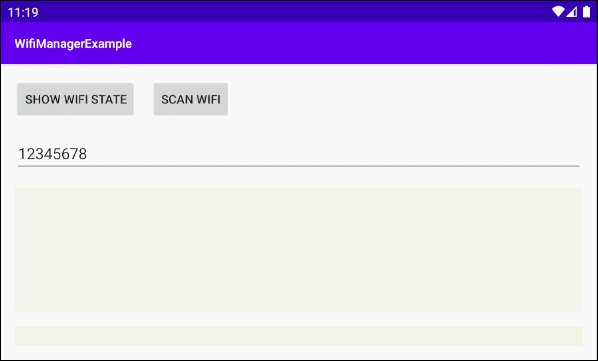

Exemple d'aperçu:
Sur Android Studio, créez un nouveau project:
  • File > New > New Project > Empty Activity
    • Name: WifiManagerExample
    • Package name: org.o7planning.wifimanagerexample
    • Language: Java
Ajoutez les autorisations (permission) à l'application:
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="org.o7planning.wifimanagerexample">

    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

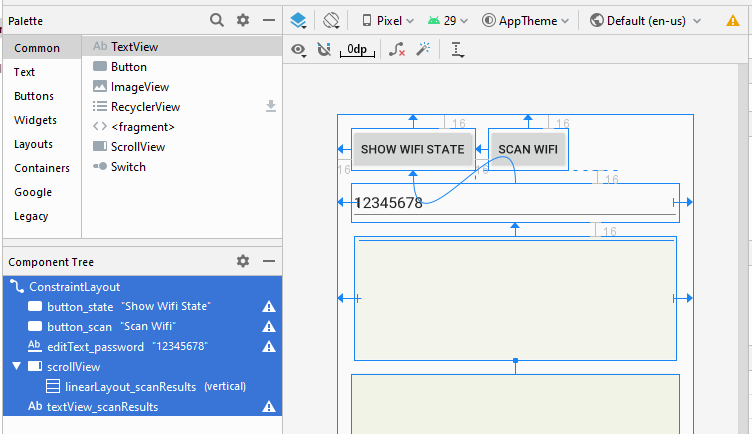

L'interface de l'exemple d'application:
activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <Button
        android:id="@+id/button_state"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:text="Show Wifi State"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Button
        android:id="@+id/button_scan"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:text="Scan Wifi"
        app:layout_constraintStart_toEndOf="@+id/button_state"
        app:layout_constraintTop_toTopOf="parent" />

    <EditText
        android:id="@+id/editText_password"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:ems="10"
        android:inputType="textPersonName"
        android:text="12345678"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/button_state" />

    <ScrollView
        android:id="@+id/scrollView"
        android:layout_width="0dp"
        android:layout_height="143dp"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:background="#F3F4EB"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/editText_password">

        <LinearLayout
            android:id="@+id/linearLayout_scanResults"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginLeft="5sp"
            android:layout_marginTop="5sp"
            android:layout_marginRight="5sp"
            android:layout_marginBottom="5sp"
            android:orientation="vertical" />
    </ScrollView>

    <TextView
        android:id="@+id/textView_scanResults"
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:layout_marginBottom="16dp"
        android:background="#F1F3E7"
        android:inputType="textMultiLine"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/scrollView" />

</androidx.constraintlayout.widget.ConstraintLayout>
MainActivity.java
package org.o7planning.wifimanagerexample;

import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;
import androidx.core.content.ContextCompat;

import android.Manifest;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.content.pm.PackageManager;
import android.net.wifi.ScanResult;
import android.net.wifi.WifiConfiguration;
import android.net.wifi.WifiManager;
import android.os.Build;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.LinearLayout;
import android.widget.TextView;
import android.widget.Toast;

import java.util.List;

public class MainActivity extends AppCompatActivity {

    private static final String LOG_TAG = "AndroidExample";

    private static final int MY_REQUEST_CODE = 123;

    private WifiManager wifiManager;

    private Button buttonState;
    private Button buttonScan;

    private EditText editTextPassword;
    private LinearLayout linearLayoutScanResults;
    private TextView textViewScanResults;

    private WifiBroadcastReceiver wifiReceiver;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        this.wifiManager = (WifiManager) this.getApplicationContext().getSystemService(Context.WIFI_SERVICE);

        // Instantiate broadcast receiver
        this.wifiReceiver = new WifiBroadcastReceiver();

        // Register the receiver
        registerReceiver(wifiReceiver, new IntentFilter(WifiManager.SCAN_RESULTS_AVAILABLE_ACTION));

        //
        this.buttonState = (Button) this.findViewById(R.id.button_state);
        this.buttonScan = (Button) this.findViewById(R.id.button_scan);

        this.editTextPassword = (EditText) this.findViewById(R.id.editText_password);
        this.textViewScanResults = (TextView) this.findViewById(R.id.textView_scanResults);
        this.linearLayoutScanResults = (LinearLayout) this.findViewById(R.id.linearLayout_scanResults);

        this.buttonState.setOnClickListener(new View.OnClickListener(){

            @Override
            public void onClick(View v) {
                showWifiState();
            }
        });

        this.buttonScan.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                askAndStartScanWifi();
            }
        });
    }


    private void askAndStartScanWifi()  {

        // With Android Level >= 23, you have to ask the user
        // for permission to Call.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.M) { // 23
            int permission1 = ContextCompat.checkSelfPermission(this, Manifest.permission.ACCESS_COARSE_LOCATION);

            // Check for permissions
            if (permission1 != PackageManager.PERMISSION_GRANTED) {

                Log.d(LOG_TAG, "Requesting Permissions");

                // Request permissions
                ActivityCompat.requestPermissions(this,
                        new String[] {
                                Manifest.permission.ACCESS_COARSE_LOCATION,
                                Manifest.permission.ACCESS_FINE_LOCATION,
                                Manifest.permission.ACCESS_WIFI_STATE,
                                Manifest.permission.ACCESS_NETWORK_STATE
                        }, MY_REQUEST_CODE);
                return;
            }
            Log.d(LOG_TAG, "Permissions Already Granted");
        }
        this.doStartScanWifi();
    }

    private void doStartScanWifi()  {
        this.wifiManager.startScan();
    }

    @Override
    public void onRequestPermissionsResult(int requestCode, String permissions[], int[] grantResults)  {
        Log.d(LOG_TAG, "onRequestPermissionsResult");

        switch (requestCode)  {
            case MY_REQUEST_CODE:  {
                // If request is cancelled, the result arrays are empty.
                if (grantResults.length > 0 && grantResults[0] == PackageManager.PERMISSION_GRANTED)  {
                    // permission was granted
                    Log.d(LOG_TAG, "Permission Granted: " + permissions[0]);

                    // Start Scan Wifi.
                    this.doStartScanWifi();
                }  else   {
                    // Permission denied, boo! Disable the
                    // functionality that depends on this permission.
                    Log.d(LOG_TAG, "Permission Denied: " + permissions[0]);
                }
                break;
            }
            // Other 'case' lines to check for other
            // permissions this app might request.
        }
    }

    private void showWifiState()  {
        int state = this.wifiManager.getWifiState();
        String statusInfo = "Unknown";

        switch (state)  {
            case WifiManager.WIFI_STATE_DISABLING:
                statusInfo = "Disabling";
                break;
            case WifiManager.WIFI_STATE_DISABLED:
                statusInfo = "Disabled";
                break;
            case WifiManager.WIFI_STATE_ENABLING:
                statusInfo = "Enabling";
                break;
            case WifiManager.WIFI_STATE_ENABLED:
                statusInfo = "Enabled";
                break;
            case WifiManager.WIFI_STATE_UNKNOWN:
                statusInfo = "Unknown";
                break;
            default:
                statusInfo = "Unknown";
                break;
        }
        Toast.makeText(this, "Wifi Status: " + statusInfo, Toast.LENGTH_LONG).show();
    }

    @Override
    protected void onStop()  {
        this.unregisterReceiver(this.wifiReceiver);
        super.onStop();
    }


    // Define class to listen to broadcasts
    class WifiBroadcastReceiver extends BroadcastReceiver  {
        @Override
        public void onReceive(Context context, Intent intent)   {
            Log.d(LOG_TAG, "onReceive()");

            Toast.makeText(MainActivity.this, "Scan Complete!", Toast.LENGTH_SHORT).show();

            boolean ok = intent.getBooleanExtra(WifiManager.EXTRA_RESULTS_UPDATED, false);

            if (ok)  {
                Log.d(LOG_TAG, "Scan OK");

                List<ScanResult> list = wifiManager.getScanResults();

                MainActivity.this.showNetworks(list);
                MainActivity.this.showNetworksDetails(list);
            }  else {
                Log.d(LOG_TAG, "Scan not OK");
            }

        }
    }

    private void showNetworks(List<ScanResult> results) {
        this.linearLayoutScanResults.removeAllViews();

        for( final ScanResult result: results)  {
            final String networkCapabilities = result.capabilities;
            final String networkSSID = result.SSID; // Network Name.
            //
            Button button = new Button(this );

            button.setText(networkSSID + " ("+networkCapabilities+")");
            this.linearLayoutScanResults.addView(button);

            button.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    String networkCapabilities = result.capabilities;
                    connectToNetwork(networkCapabilities, networkSSID);
                }
            });
        }
    }

    private void showNetworksDetails(List<ScanResult> results)  {

        this.textViewScanResults.setText("");
        StringBuilder sb = new StringBuilder();
        sb.append("Result Count: " + results.size());

        for(int i = 0; i < results.size(); i++ )  {
            ScanResult result = results.get(i);
            sb.append("\n\n  --------- Network " + i + "/" + results.size() + " ---------");

            sb.append("\n result.capabilities: " + result.capabilities);
            sb.append("\n result.SSID: " + result.SSID); // Network Name.

            sb.append("\n result.BSSID: " + result.BSSID);
            sb.append("\n result.frequency: " + result.frequency);
            sb.append("\n result.level: " + result.level);

            sb.append("\n result.describeContents(): " + result.describeContents());

            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN_MR1) { // Level 17, Android 4.2
                sb.append("\n result.timestamp: " + result.timestamp);
            }

            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) { // Level 23, Android 6.0
                sb.append("\n result.centerFreq0: " + result.centerFreq0);
                sb.append("\n result.centerFreq1: " + result.centerFreq1);
                sb.append("\n result.venueName: " + result.venueName);
                sb.append("\n result.operatorFriendlyName: " + result.operatorFriendlyName);
                sb.append("\n result.channelWidth: " + result.channelWidth);
                sb.append("\n result.is80211mcResponder(): " + result.is80211mcResponder());
                sb.append("\n result.isPasspointNetwork(): " + result.isPasspointNetwork() );
            }
        }
        this.textViewScanResults.setText(sb.toString());
    }

    private void connectToNetwork(String networkCapabilities, String networkSSID)  {
        Toast.makeText(this, "Connecting to network: "+ networkSSID, Toast.LENGTH_SHORT).show();

        String networkPass = this.editTextPassword.getText().toString();
        //
        WifiConfiguration wifiConfig = new WifiConfiguration();
        wifiConfig.SSID =  "\"" + networkSSID + "\"";

        if(networkCapabilities.toUpperCase().contains("WEP")) { // WEP Network.
            Toast.makeText(this, "WEP Network", Toast.LENGTH_SHORT).show();

            wifiConfig.wepKeys[0] = "\"" + networkPass + "\"";
            wifiConfig.wepTxKeyIndex = 0;
            wifiConfig.allowedKeyManagement.set(WifiConfiguration.KeyMgmt.NONE);
            wifiConfig.allowedGroupCiphers.set(WifiConfiguration.GroupCipher.WEP40);
        } else if(networkCapabilities.toUpperCase().contains("WPA")) { // WPA Network
            Toast.makeText(this, "WPA Network", Toast.LENGTH_SHORT).show();
            wifiConfig.preSharedKey = "\""+ networkPass +"\"";
        } else  { // OPEN Network.
            Toast.makeText(this, "OPEN Network", Toast.LENGTH_SHORT).show();
            wifiConfig.allowedKeyManagement.set(WifiConfiguration.KeyMgmt.NONE);
        }

        this.wifiManager.addNetwork(wifiConfig);

        List<WifiConfiguration> list = this.wifiManager.getConfiguredNetworks();
        for( WifiConfiguration config : list ) {
            if(config.SSID != null && config.SSID.equals("\"" + networkSSID + "\"")) {
                this.wifiManager.disconnect();
                this. wifiManager.enableNetwork(config.networkId, true);
                this.wifiManager.reconnect();
                break;
            }
        }
    }
}

Tutoriels de programmation Android

Show More
