Le Tutoriel de JavaFX TreeView

JavaFX TreeView
L'exemple avec JavaFX TreeView
TreeView avec plusieurs éléments racine
Tree Cell Editors

1. JavaFX TreeView

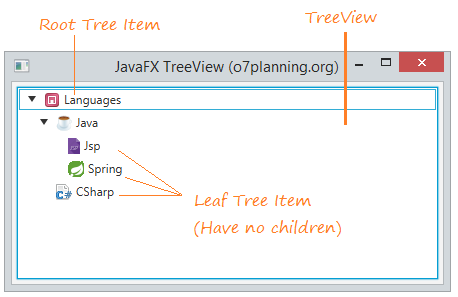

JavaFX TreeView vous permet de créer un structure arborescente, avec un élément racine.

2. L'exemple avec JavaFX TreeView

L'exemple ci-dessous crée un TreeView avec un élément racine (Root Item).

TreeViewDemo.java

package org.o7planning.javafx.treeview;

import org.o7planning.javafx.model.BookCategory;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.TreeItem;
import javafx.scene.control.TreeView;
import javafx.scene.layout.StackPane;
import javafx.stage.Stage;

public class TreeViewDemo extends Application {

    @Override
    public void start(Stage primaryStage) {

        BookCategory catJava = new BookCategory("JAVA-00", "Java");
        BookCategory catJSP = new BookCategory("JAVA-01", "Jsp");
        BookCategory catSpring = new BookCategory("JAVA-02", "Spring");

        // Root Item
        TreeItem<BookCategory> rootItem = new TreeItem<BookCategory>(catJava);
        rootItem.setExpanded(true);

        // JSP Item
        TreeItem<BookCategory> itemJSP = new TreeItem<BookCategory>(catJSP);

        // Spring Item
        TreeItem<BookCategory> itemSpring = new TreeItem<>(catSpring);

        // Add to Root
        rootItem.getChildren().addAll(itemJSP, itemSpring);

        TreeView<BookCategory> tree = new TreeView<BookCategory>(rootItem);

        StackPane root = new StackPane();
        root.setPadding(new Insets(5));
        root.getChildren().add(tree);

        primaryStage.setTitle("JavaFX TreeView (o7planning.org)");
        primaryStage.setScene(new Scene(root, 300, 250));
        primaryStage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }

}

BookCategory.java

package org.o7planning.javafx.model;

public class BookCategory {

    private String code;
    private String name;

    public BookCategory() {

    }

    public BookCategory(String code, String name) {
        this.code = code;
        this.name = name;
    }

    public String getCode() {
        return code;
    }

    public void setCode(String code) {
        this.code = code;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    @Override
    public String toString()  {
        return this.name;
    }

}

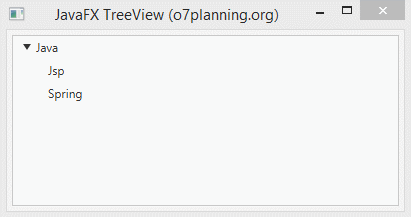

Exécutez l'exemple:

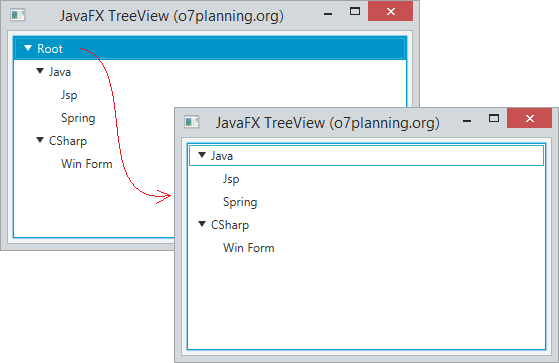

3. TreeView avec plusieurs éléments racine

Notez que TreeView ne permet pas de comprendre plusieur éléments racine, mais vous pouvez cacher l'élément racine et ses petits éléments qui seront affichés comme s'ils sont les éléments racines.

TreeViewMultiRootDemo.java

package org.o7planning.javafx.treeview;

import org.o7planning.javafx.model.BookCategory;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.TreeItem;
import javafx.scene.control.TreeView;
import javafx.scene.layout.StackPane;
import javafx.stage.Stage;

public class TreeViewMultiRootDemo extends Application {

   @Override
   public void start(Stage primaryStage) {

       BookCategory catRoot = new BookCategory("ROOT", "Root");
       // Java
       BookCategory catJava = new BookCategory("JAVA-00", "Java");
       BookCategory catJSP = new BookCategory("JAVA-01", "Jsp");
       BookCategory catSpring = new BookCategory("JAVA-02", "Spring");
       // C#
       BookCategory catCSharp = new BookCategory("C#-00", "CSharp");
       BookCategory catWinForm = new BookCategory("C#-01", "Win Form");

       // Root Item
       TreeItem<BookCategory> rootItem = new TreeItem<BookCategory>(catRoot);
       rootItem.setExpanded(true);

       // Java
       TreeItem<BookCategory> itemJava = new TreeItem<BookCategory>(catJava);
       TreeItem<BookCategory> itemJSP = new TreeItem<BookCategory>(catJSP);
       TreeItem<BookCategory> itemSpring = new TreeItem<BookCategory>(catSpring);
       itemJava.getChildren().addAll(itemJSP, itemSpring);

       // CSharp
       TreeItem<BookCategory> itemCSharp = new TreeItem<BookCategory>(catCSharp);
       TreeItem<BookCategory> itemWinForm = new TreeItem<BookCategory>(catWinForm);
       itemCSharp.getChildren().addAll(itemWinForm);

       // Add to Root
       rootItem.getChildren().addAll(itemJava,itemCSharp);


       TreeView<BookCategory> tree = new TreeView<BookCategory>(rootItem);

       // Hide the root Item.
       tree.setShowRoot(false);

       StackPane root = new StackPane();
       root.setPadding(new Insets(5));
       root.getChildren().add(tree);

       primaryStage.setTitle("JavaFX TreeView (o7planning.org)");
       primaryStage.setScene(new Scene(root, 300, 250));
       primaryStage.show();
   }

   public static void main(String[] args) {
       launch(args);
   }
}

4. Tree Cell Editors

JavaFX vous permet modifier les données de l'arbre. Dans les cellules de l'arbre, vous pouvez utiliser un des éditeurs (Tree Cell Editors) dans la liste ci-dessous :

CheckBoxTreeCell
ChoiceBoxTreeCell
ComboBoxTreeCell
TextFieldTreeCell

Les classes ci-dessus sont étendues de la classe TreeCell pour rendre (render) un composant commande (Controls)à l'intérieur de la cellule de l'arbre lorsque l'utilisateur modifie les données sur la cellule.

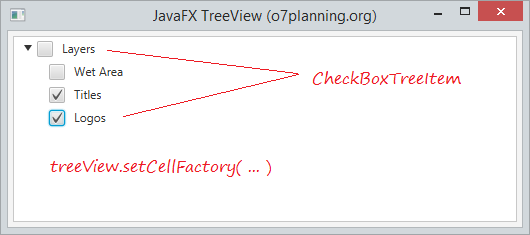

TreeView avec CheckBox

L'exemple ci-dessous crée un TreeView avec CheckBoxTreeltem. Vous devez installer Cell Factory dans TreeView via la méthode setCellFactory. CellFactory est utilisé pour rendre l'interface à la cellule de l'arbre.

Avec des checkBox:

treeView.setCellFactory(new Callback<TreeView<Layer>, TreeCell<Layer>>() {

   @Override
   public TreeCell<Layer> call(TreeView<Layer> param) {

       return new CheckBoxTreeCell<Layer>();
   }
});

// Or:

treeView.setCellFactory( CheckBoxTreeCell.<Layer> forTreeView());

Voyez l'exemple complet:

TreeViewCheckBoxDemo.java

package org.o7planning.javafx.treeview;

import org.o7planning.javafx.model.BookCategory;
import org.o7planning.javafx.model.Layer;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.CheckBoxTreeItem;
import javafx.scene.control.TreeCell;
import javafx.scene.control.TreeItem;
import javafx.scene.control.TreeView;
import javafx.scene.control.cell.CheckBoxTreeCell;
import javafx.scene.layout.StackPane;
import javafx.stage.Stage;
import javafx.util.Callback;

public class TreeViewCheckBoxDemo extends Application {

    @Override
    public void start(Stage primaryStage) {

        Layer layer0 = new Layer("Layers", false);

        Layer layer1 = new Layer("Wet Area", false);
        Layer layer2 = new Layer("Titles", true);
        Layer layer3 = new Layer("Logos", true);

        // Root Item
        TreeItem<Layer> rootItem = new TreeItem<Layer>(layer0);
        rootItem.setExpanded(true);

        // Item 1
        CheckBoxTreeItem<Layer> item1 = new CheckBoxTreeItem<Layer>(layer1);
        item1.setSelected(layer1.isSelected());

        // Item 2
        CheckBoxTreeItem<Layer> item2 = new CheckBoxTreeItem<Layer>(layer2);
        item1.setSelected(layer2.isSelected());

        // Item 3
        CheckBoxTreeItem<Layer> item3 = new CheckBoxTreeItem<Layer>(layer3);
        item1.setSelected(layer3.isSelected());

        // Add to Root
        rootItem.getChildren().addAll(item1, item2, item3);

        TreeView<Layer> treeView = new TreeView<Layer>(rootItem);

        // Set Cell Factory.

        treeView.setCellFactory(new Callback<TreeView<Layer>, TreeCell<Layer>>() {

            @Override
            public TreeCell<Layer> call(TreeView<Layer> param) {

                return new CheckBoxTreeCell<Layer>();
            }
        });

        StackPane root = new StackPane();
        root.setPadding(new Insets(5));
        root.getChildren().add(treeView);

        primaryStage.setTitle("JavaFX TreeView (o7planning.org)");
        primaryStage.setScene(new Scene(root, 300, 250));
        primaryStage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }

}

Layer.java

package org.o7planning.javafx.model;

public class Layer {

    private String layerName;
    private boolean selected;

    public Layer() {

    }

    public Layer(String layerName, boolean selected) {
        this.layerName = layerName;
        this.selected = selected;
    }

    public String getLayerName() {
        return layerName;
    }

    public void setLayerName(String layerName) {
        this.layerName = layerName;
    }

    public boolean isSelected() {
        return selected;
    }

    public void setSelected(boolean selected) {
        this.selected = selected;
    }

    @Override
    public String toString() {
        return this.layerName;
    }

}

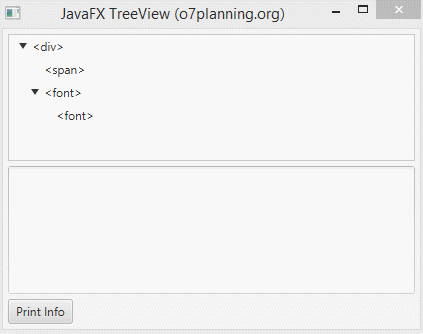

TreeView avec ChoiceBox

TreeViewChoiceBoxDemo.java

package org.o7planning.javafx.treeview;

import org.o7planning.javafx.model.XmlTag;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.TextArea;
import javafx.scene.control.TreeCell;
import javafx.scene.control.TreeItem;
import javafx.scene.control.TreeView;
import javafx.scene.control.cell.ChoiceBoxTreeCell;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;
import javafx.util.Callback;

public class TreeViewChoiceBoxDemo extends Application {

  @Override
  public void start(Stage primaryStage) {

      XmlTag tag0 = new XmlTag("div");
      XmlTag tag1 = new XmlTag("span");
      XmlTag tag2 = new XmlTag("font");
      XmlTag tag21 = new XmlTag("font");
      XmlTag tag3 = new XmlTag("color");

      // Root Item
      TreeItem<XmlTag> rootItem = new TreeItem<XmlTag>(tag0);
      rootItem.setExpanded(true);

      // Item 1
      TreeItem<XmlTag> item1 = new TreeItem<XmlTag>(tag1);

      // Item 2
      TreeItem<XmlTag> item2 = new TreeItem<XmlTag>(tag2);

      // Item 2.1
      TreeItem<XmlTag> item21 = new TreeItem<XmlTag>(tag21);
      item2.getChildren().add(item21);
      item2.setExpanded(true);

      // Add to Root
      rootItem.getChildren().addAll(item1, item2);

      TextArea textArea = new TextArea();

      TreeView<XmlTag> treeView = new TreeView<XmlTag>(rootItem);
      treeView.setMaxHeight(180);
      treeView.setEditable(true);

      // Set Cell Factory.
      // treeView.setCellFactory( ChoiceBoxTreeCell.<XmlTag> forTreeView());

      treeView.setCellFactory(new Callback<TreeView<XmlTag>, TreeCell<XmlTag>>() {

          @Override
          public TreeCell<XmlTag> call(TreeView<XmlTag> param) {
              // ChoiceBox with 3 option.
              return new ChoiceBoxTreeCell<XmlTag>(tag1, tag2, tag3);
          }
      });

      // Add event handler to item2, it also affects the child items.

      item2.addEventHandler(TreeItem.<XmlTag> valueChangedEvent(),
              new EventHandler<TreeItem.TreeModificationEvent<XmlTag>>() {

                  @Override
                  public void handle(TreeItem.TreeModificationEvent<XmlTag> event) {

                      textArea.appendText("Change to: " + event.getTreeItem().getValue().getTagName() + "\n");
                  }

              });
      // Button
      Button button = new Button("Print Info");

      button.setOnAction(new EventHandler<ActionEvent>() {

          @Override
          public void handle(ActionEvent event) {
              textArea.setText(null);
                textArea.appendText("Item0: "+ rootItem.getValue().getTagName());
                textArea.appendText("\nItem1: "+ item1.getValue().getTagName());
              textArea.appendText("\nItem2: "+ item2.getValue().getTagName());
              textArea.appendText("\nItem21: "+ item21.getValue().getTagName());
          }
      });


      VBox root = new VBox();
      root.setPadding(new Insets(5));
      root.setSpacing(5);
      root.getChildren().addAll(treeView, textArea,button);

      primaryStage.setTitle("JavaFX TreeView (o7planning.org)");
      primaryStage.setScene(new Scene(root, 450, 300));
      primaryStage.show();
  }

  public static void main(String[] args) {
      launch(args);
  }

}

XmlTag.java

package org.o7planning.javafx.model;

public class XmlTag {

    private String tagName;

    public XmlTag() {

    }

    public XmlTag(String tagName) {
        this.tagName = tagName;
    }

    public String getTagName() {
        return tagName;
    }

    public void setTagName(String tagName) {
        this.tagName = tagName;
    }

    @Override
    public String toString() {
        return "<"+this.tagName+">";
    }

}
