Le Tutoriel de JavaFX Accordion

Javafx Accordion
Exemple de Accordion
Groupe des TitledPane

1. Javafx Accordion

En JavaFX, vous pouvez créer un Accordion en utilisant la classe Accordion.

** Accordion **

Accordion root= new Accordion();
root.getPanes().addAll(firstTitledPane, secondTitledPane);

En fait, vous pouvez également créer un composant d'interface qui est similaire à Accordion en utilisant la combinaison TitledPane et VBox.

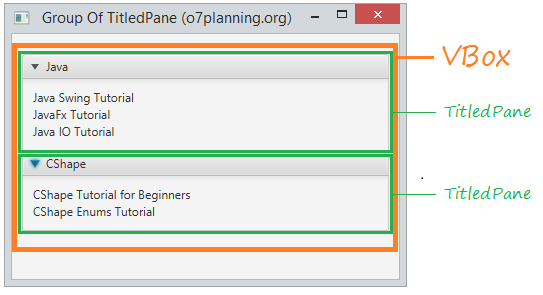

L'image ci-dessous illustre un groupe de TitledPane placé dans un VBox.

2. Exemple de Accordion

AccordionDemo.java

package org.o7planning.javafx.accordion;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Accordion;
import javafx.scene.control.Label;
import javafx.scene.control.TitledPane;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class AccordionDemo extends Application {


  @Override
  public void start(Stage stage) {

      // Create First TitledPane.
      TitledPane firstTitledPane = new TitledPane();
      firstTitledPane.setText("Java");

      VBox content1 = new VBox();
      content1.getChildren().add(new Label("Java Swing Tutorial"));
      content1.getChildren().add(new Label("JavaFx Tutorial"));
      content1.getChildren().add(new Label("Java IO Tutorial"));

      firstTitledPane.setContent(content1);

      // Create Second TitledPane.
      TitledPane secondTitledPane = new TitledPane();
      secondTitledPane.setText("CShape");

      VBox content2 = new VBox();
      content2.getChildren().add(new Label("CShape Tutorial for Beginners"));
      content2.getChildren().add(new Label("CShape Enums Tutorial"));

      secondTitledPane.setContent(content2);


      Accordion root= new Accordion();
      root.getPanes().addAll(firstTitledPane, secondTitledPane);

      Scene scene = new Scene(root, 300, 200);
      stage.setTitle("Accordion (o7planning.org)");
      stage.setScene(scene);
      stage.show();
  }

  public static void main(String[] args) {
      Application.launch(args);
  }

}

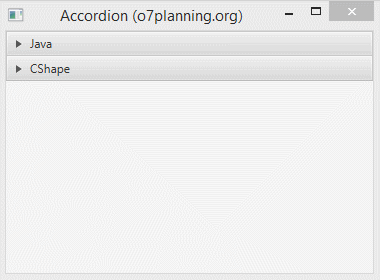

Exécutez l'exemple :

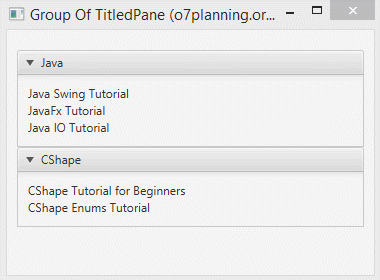

3. Groupe des TitledPane

GroupOfTitledPane.java

package org.o7planning.javafx.accordion;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Label;
import javafx.scene.control.TitledPane;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class GroupOfTitledPane extends Application {

   @Override
   public void start(Stage stage) {

       // Create First TitledPane.
       TitledPane firstTitledPane = new TitledPane();
       firstTitledPane.setText("Java");

       VBox content1 = new VBox();
       content1.getChildren().add(new Label("Java Swing Tutorial"));
       content1.getChildren().add(new Label("JavaFx Tutorial"));
       content1.getChildren().add(new Label("Java IO Tutorial"));

       firstTitledPane.setContent(content1);

       // Create Second TitledPane.
       TitledPane secondTitledPane = new TitledPane();
       secondTitledPane.setText("CShape");

       VBox content2 = new VBox();
       content2.getChildren().add(new Label("CShape Tutorial for Beginners"));
       content2.getChildren().add(new Label("CShape Enums Tutorial"));

       secondTitledPane.setContent(content2);

       // Create Root Pane.
       VBox root = new VBox();
       root.setPadding(new Insets(20, 10, 10, 10));
       root.getChildren().addAll(firstTitledPane, secondTitledPane);
       Scene scene = new Scene(root, 300, 200);

       stage.setTitle("Group Of TitledPane (o7planning.org)");
       stage.setScene(scene);
       stage.show();
   }

   public static void main(String[] args) {
       Application.launch(args);
   }

}
