Créer une application de connexion avec Spring Boot, Spring Security, JPA

  1. Objectif de l'exemple
  2. Préparer une base de données
  3. Créer un projet Spring Boot
  4. Configurer le fichier pom.xml
  5. Configurer la source de données

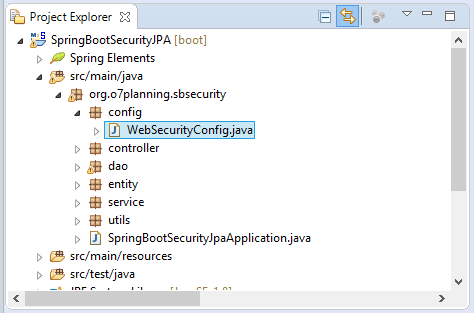

  6. Configuration de sécurité & Remember Me
  7. Des classes Entity

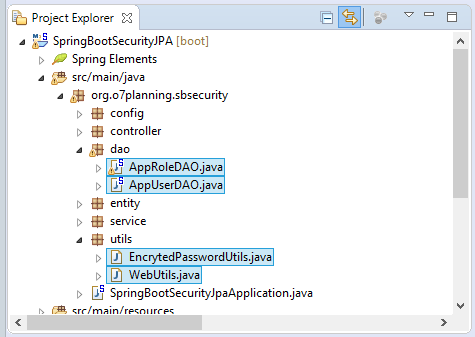

  8. DAO, WebUtils
  9. UserDetailsService
  10. Controllers
  11. Thymeleaf Template

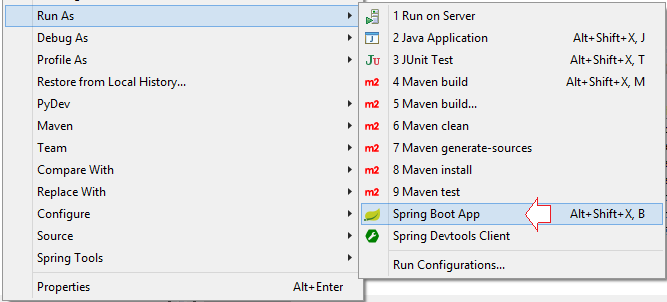

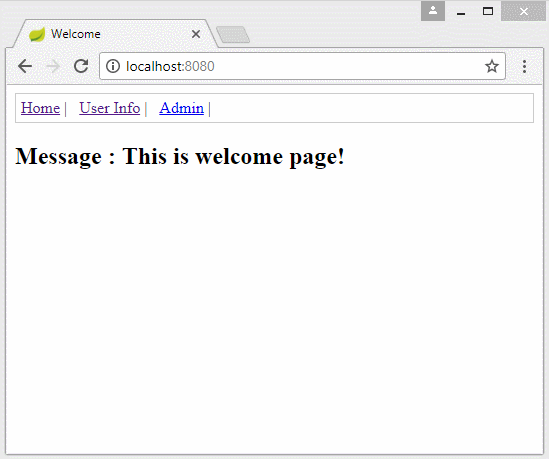

  12. Exécuter l'application

1. Objectif de l'exemple

Ce document est basé sur :
  • Spring Boot 2.x
  • Spring Security
  • JPA
  • Thymeleaf (Or JSP)
  • Database: MySQL, SQL Server, Oracle, Postgres

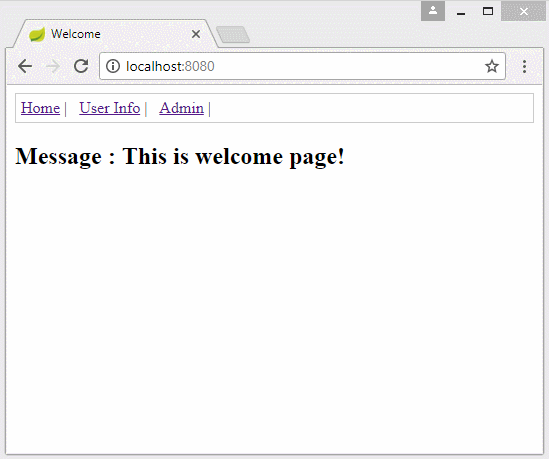

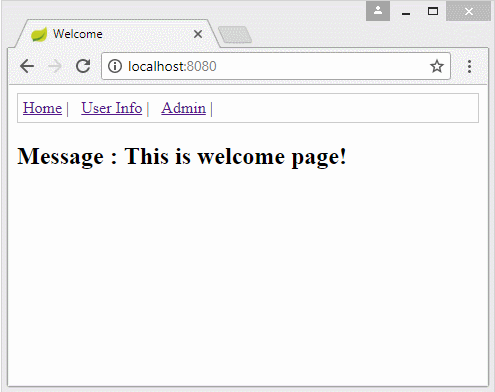

Dans cet article, je vais vous donner des instruction de la création une application de connexion avec Spring Boot + Spring Security + JPA + Thymeleaf et expliquer le principe de fonctionnement de Spring Security.

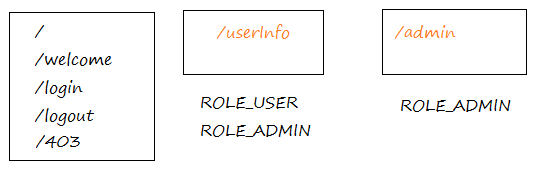

Les utilisateurs doivent se connecter, ils peuvent voir les pages protégées:
Les utilisateurs qui se sont connectés au système sont autorisés à afficher seulement les pages dans leur portée et leur rôle. S'ils accèdent aux pages protégées situées au-delà de leur rôle, ils seront refusés.

2. Préparer une base de données

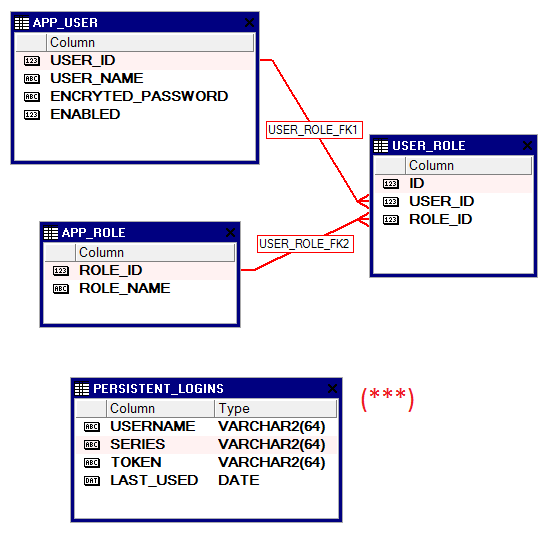

Dans la base de données, nous avons trois tableaux APP_USER, APP_ROLE, USER_ROLE. Ce sont les tableaux auxquels vous vous intéressez. De plus, un autre tableau est PERSISTENT_LOGINS, ce tableau est utilisé par Spring Remember Me API afin de stocker les informations de Token, au dernier temps où chaque utilisateur se connecte.
MySQL
-- Create table
create table APP_USER
(
  USER_ID           BIGINT not null,
  USER_NAME         VARCHAR(36) not null,
  ENCRYTED_PASSWORD VARCHAR(128) not null,
  ENABLED           BIT not null
) ;
--
alter table APP_USER
  add constraint APP_USER_PK primary key (USER_ID);

alter table APP_USER
  add constraint APP_USER_UK unique (USER_NAME);


-- Create table
create table APP_ROLE
(
  ROLE_ID   BIGINT not null,
  ROLE_NAME VARCHAR(30) not null
) ;
--
alter table APP_ROLE
  add constraint APP_ROLE_PK primary key (ROLE_ID);

alter table APP_ROLE
  add constraint APP_ROLE_UK unique (ROLE_NAME);


-- Create table
create table USER_ROLE
(
  ID      BIGINT not null,
  USER_ID BIGINT not null,
  ROLE_ID BIGINT not null
);
--
alter table USER_ROLE
  add constraint USER_ROLE_PK primary key (ID);

alter table USER_ROLE
  add constraint USER_ROLE_UK unique (USER_ID, ROLE_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK1 foreign key (USER_ID)
  references APP_USER (USER_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK2 foreign key (ROLE_ID)
  references APP_ROLE (ROLE_ID);

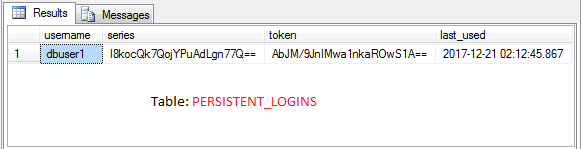

-- Used by Spring Remember Me API.
CREATE TABLE Persistent_Logins (

    username varchar(64) not null,
    series varchar(64) not null,
    token varchar(64) not null,
    last_used timestamp not null,
    PRIMARY KEY (series)

);

--------------------------------------

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (2, 'dbuser1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (1, 'dbadmin1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

---

insert into app_role (ROLE_ID, ROLE_NAME)
values (1, 'ROLE_ADMIN');

insert into app_role (ROLE_ID, ROLE_NAME)
values (2, 'ROLE_USER');

---

insert into user_role (ID, USER_ID, ROLE_ID)
values (1, 1, 1);

insert into user_role (ID, USER_ID, ROLE_ID)
values (2, 1, 2);

insert into user_role (ID, USER_ID, ROLE_ID)
values (3, 2, 2);
---
SQL Server
-- Create table
create table APP_USER
(
  USER_ID           BIGINT not null,
  USER_NAME         VARCHAR(36) not null,
  ENCRYTED_PASSWORD VARCHAR(128) not null,
  ENABLED           BIT not null
) ;
--
alter table APP_USER
  add constraint APP_USER_PK primary key (USER_ID);

alter table APP_USER
  add constraint APP_USER_UK unique (USER_NAME);


-- Create table
create table APP_ROLE
(
  ROLE_ID   BIGINT not null,
  ROLE_NAME VARCHAR(30) not null
) ;
--
alter table APP_ROLE
  add constraint APP_ROLE_PK primary key (ROLE_ID);

alter table APP_ROLE
  add constraint APP_ROLE_UK unique (ROLE_NAME);


-- Create table
create table USER_ROLE
(
  ID      BIGINT not null,
  USER_ID BIGINT not null,
  ROLE_ID BIGINT not null
);
--
alter table USER_ROLE
  add constraint USER_ROLE_PK primary key (ID);

alter table USER_ROLE
  add constraint USER_ROLE_UK unique (USER_ID, ROLE_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK1 foreign key (USER_ID)
  references APP_USER (USER_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK2 foreign key (ROLE_ID)
  references APP_ROLE (ROLE_ID);



-- Used by Spring Remember Me API.
CREATE TABLE Persistent_Logins (

    username varchar(64) not null,
    series varchar(64) not null,
    token varchar(64) not null,
    last_used Datetime not null,
    PRIMARY KEY (series)

);

--------------------------------------

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (2, 'dbuser1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (1, 'dbadmin1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

---

insert into app_role (ROLE_ID, ROLE_NAME)
values (1, 'ROLE_ADMIN');

insert into app_role (ROLE_ID, ROLE_NAME)
values (2, 'ROLE_USER');

---

insert into user_role (ID, USER_ID, ROLE_ID)
values (1, 1, 1);

insert into user_role (ID, USER_ID, ROLE_ID)
values (2, 1, 2);

insert into user_role (ID, USER_ID, ROLE_ID)
values (3, 2, 2);
ORACLE
-- Create table
create table APP_USER
(
  USER_ID           NUMBER(19) not null,
  USER_NAME         VARCHAR2(36) not null,
  ENCRYTED_PASSWORD VARCHAR2(128) not null,
  ENABLED           NUMBER(1) not null
) ;
--
alter table APP_USER
  add constraint APP_USER_PK primary key (USER_ID);

alter table APP_USER
  add constraint APP_USER_UK unique (USER_NAME);


-- Create table
create table APP_ROLE
(
  ROLE_ID   NUMBER(19) not null,
  ROLE_NAME VARCHAR2(30) not null
) ;
--
alter table APP_ROLE
  add constraint APP_ROLE_PK primary key (ROLE_ID);

alter table APP_ROLE
  add constraint APP_ROLE_UK unique (ROLE_NAME);


-- Create table
create table USER_ROLE
(
  ID      NUMBER(19) not null,
  USER_ID NUMBER(19) not null,
  ROLE_ID NUMBER(19) not null
);
--
alter table USER_ROLE
  add constraint USER_ROLE_PK primary key (ID);

alter table USER_ROLE
  add constraint USER_ROLE_UK unique (USER_ID, ROLE_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK1 foreign key (USER_ID)
  references APP_USER (USER_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK2 foreign key (ROLE_ID)
  references APP_ROLE (ROLE_ID);

-- Used by Spring Remember Me API.
CREATE TABLE Persistent_Logins (

    username varchar2(64) not null,
    series varchar2(64) not null,
    token varchar2(64) not null,
    last_used Date not null,
    PRIMARY KEY (series)

);
--------------------------------------

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (2, 'dbuser1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (1, 'dbadmin1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

---

insert into app_role (ROLE_ID, ROLE_NAME)
values (1, 'ROLE_ADMIN');

insert into app_role (ROLE_ID, ROLE_NAME)
values (2, 'ROLE_USER');

---

insert into user_role (ID, USER_ID, ROLE_ID)
values (1, 1, 1);

insert into user_role (ID, USER_ID, ROLE_ID)
values (2, 1, 2);

insert into user_role (ID, USER_ID, ROLE_ID)
values (3, 2, 2);
---
Commit;
Postgres
-- Create table
create table APP_USER
(
  USER_ID           BIGINT not null,
  USER_NAME         VARCHAR(36) not null,
  ENCRYTED_PASSWORD VARCHAR(128) not null,
  ENABLED           Int not null
) ;
--
alter table APP_USER
  add constraint APP_USER_PK primary key (USER_ID);

alter table APP_USER
  add constraint APP_USER_UK unique (USER_NAME);


-- Create table
create table APP_ROLE
(
  ROLE_ID   BIGINT not null,
  ROLE_NAME VARCHAR(30) not null
) ;
--
alter table APP_ROLE
  add constraint APP_ROLE_PK primary key (ROLE_ID);

alter table APP_ROLE
  add constraint APP_ROLE_UK unique (ROLE_NAME);


-- Create table
create table USER_ROLE
(
  ID      BIGINT not null,
  USER_ID BIGINT not null,
  ROLE_ID BIGINT not null
);
--
alter table USER_ROLE
  add constraint USER_ROLE_PK primary key (ID);

alter table USER_ROLE
  add constraint USER_ROLE_UK unique (USER_ID, ROLE_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK1 foreign key (USER_ID)
  references APP_USER (USER_ID);

alter table USER_ROLE
  add constraint USER_ROLE_FK2 foreign key (ROLE_ID)
  references APP_ROLE (ROLE_ID);



-- Used by Spring Remember Me API.
CREATE TABLE Persistent_Logins (

    username varchar(64) not null,
    series varchar(64) not null,
    token varchar(64) not null,
    last_used timestamp not null,
    PRIMARY KEY (series)

);

--------------------------------------

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (2, 'dbuser1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

insert into App_User (USER_ID, USER_NAME, ENCRYTED_PASSWORD, ENABLED)
values (1, 'dbadmin1', '$2a$10$PrI5Gk9L.tSZiW9FXhTS8O8Mz9E97k2FZbFvGFFaSsiTUIl.TCrFu', 1);

---

insert into app_role (ROLE_ID, ROLE_NAME)
values (1, 'ROLE_ADMIN');

insert into app_role (ROLE_ID, ROLE_NAME)
values (2, 'ROLE_USER');

---

insert into user_role (ID, USER_ID, ROLE_ID)
values (1, 1, 1);

insert into user_role (ID, USER_ID, ROLE_ID)
values (2, 1, 2);

insert into user_role (ID, USER_ID, ROLE_ID)
values (3, 2, 2);
---
Commit;

3. Créer un projet Spring Boot

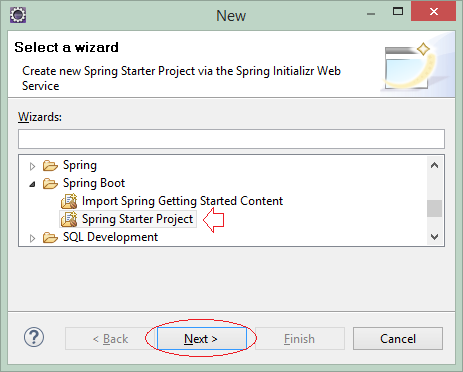

Sur Eclipse, créez un projet Spring Boot.

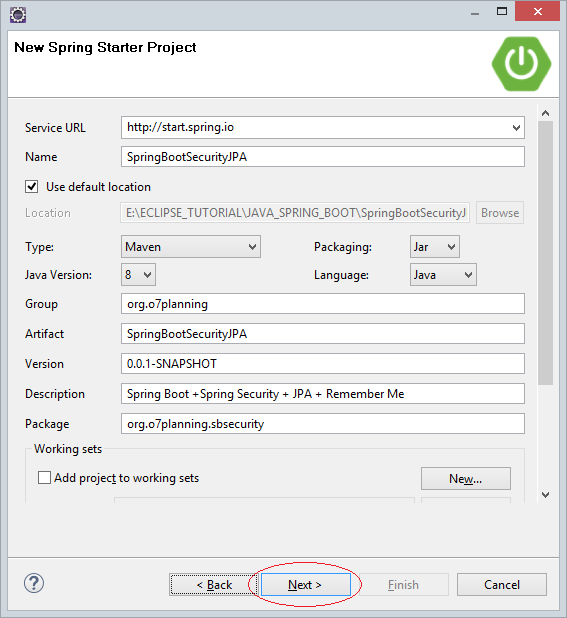

Saisissez :
  • Name: SpringBootSecurityJPA
  • Group: org.o7planning
  • Artifact: SpringBootSecurityJPA
  • Description: Spring Boot +Spring Security + JPA + Remember Me.
  • Package: org.o7planning.sbsecurity

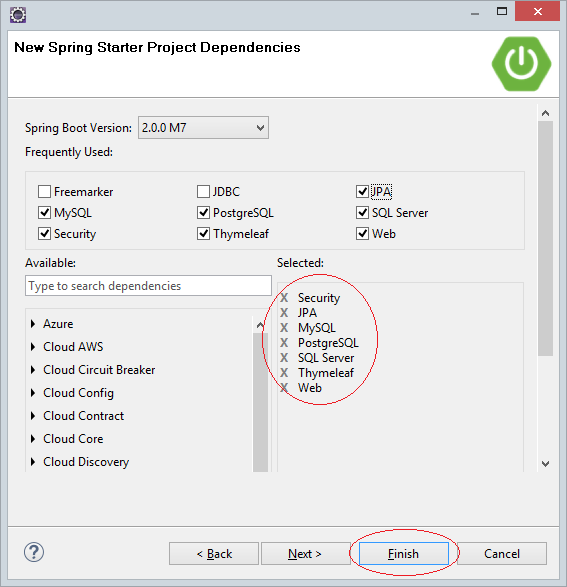

Dans l'étape suivante, vous devez sélectionner les bibliothèques et les technologies qui seront utilisées (Dans cette publication, nous nous connecterons à la base de données Oracle, MySQL, SQL Server ou Postgres).
Database Libraries:
  • MySQL
  • PostgresSQL
  • SQL Server
Tech:
  • Web
  • Thymeleaf
  • Security

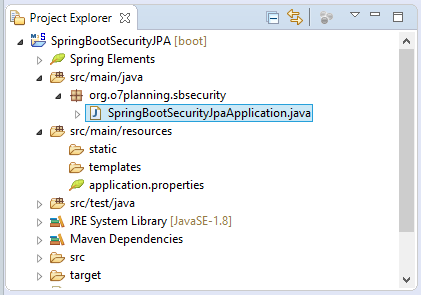

OK le projet a été créé.
SpringBootSecurityJpaApplication.java
package org.o7planning.sbsecurity;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootSecurityJpaApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootSecurityJpaApplication.class, args);
    }
}

4. Configurer le fichier pom.xml

Si vous utilisez la base de données Oracle, vous devez déclarer une bibliothèque nécessaire de Oracle dans le fichier pom.xml:
** Oracle **
<dependencies>
    .....

     <dependency>
        <groupId>com.oracle</groupId>
        <artifactId>ojdbc6</artifactId>
        <version>11.2.0.3</version>
    </dependency>

    .....
</dependencies>

<repositories>
        ....

    <!-- Repository for ORACLE JDBC Driver -->
    <repository>
        <id>codelds</id>
        <url>https://code.lds.org/nexus/content/groups/main-repo</url>
    </repository>

    .....
</repositories>
Si vous vous connectez à la base de données SQL Service, vous pouvez utiliser une des deux bibliothèques JTDS ou Mssql-Jdbc:
** SQL Server **
<dependencies>
       .....

    <dependency>
        <groupId>com.microsoft.sqlserver</groupId>
        <artifactId>mssql-jdbc</artifactId>
        <scope>runtime</scope>
    </dependency>

    <dependency>
        <groupId>net.sourceforge.jtds</groupId>
        <artifactId>jtds</artifactId>
        <scope>runtime</scope>
    </dependency>

     .....
</dependencies>
Le contenu complet du fichier pom.xml:
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <groupId>org.o7planning</groupId>
    <artifactId>SpringBootSecurityJPA</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>SpringBootSecurityJPA</name>
    <description>Spring Boot +Spring Security + JPA + Remember Me</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.0.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>ojdbc6</artifactId>
            <version>11.2.0.3</version>
        </dependency>

        <!-- SQL Server Mssql-Jdbc Driver -->
        <dependency>
            <groupId>com.microsoft.sqlserver</groupId>
            <artifactId>mssql-jdbc</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- SQL Server JTDS Driver -->
        <dependency>
            <groupId>net.sourceforge.jtds</groupId>
            <artifactId>jtds</artifactId>
            <version>1.3.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <repositories>
        <!-- Repository for ORACLE JDBC Driver -->
        <repository>
            <id>codelds</id>
            <url>https://code.lds.org/nexus/content/groups/main-repo</url>
        </repository>
    </repositories>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

5. Configurer la source de données

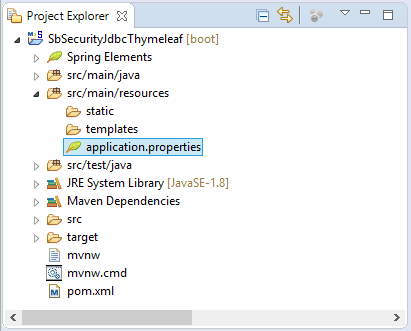

Pourque Spring puisse se connecter à la base de données, vous devez configurer les paramètres nécessaires dans le fichier application.properties.
application.properties (MySQL)
# ===============================
# DATABASE
# ===============================

spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://tran-vmware-pc:3306/Test
spring.datasource.username=root
spring.datasource.password=12345

# ===============================
# JPA / HIBERNATE
# ===============================

spring.jpa.show-sql=true
spring.jpa.hibernate.ddl-auto=none
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.MySQL5Dialect
application.properties (ORACLE)
# ===============================
# DATABASE
# ===============================

spring.datasource.driver-class-name=oracle.jdbc.driver.OracleDriver

spring.datasource.url=jdbc:oracle:thin:@tran-vmware-pc:1521:db12c
spring.datasource.username=Test
spring.datasource.password=12345


# ===============================
# JPA / HIBERNATE
# ===============================

spring.jpa.show-sql=true
spring.jpa.hibernate.ddl-auto=none
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.Oracle10gDialect
application.properties (SQL Server + Mssql-jdbc Driver)
# ===============================
# DATABASE
# ===============================

spring.datasource.driver-class-name=com.microsoft.sqlserver.jdbc.SQLServerDriver
spring.datasource.url=jdbc:sqlserver://tran-vmware-pc\\SQLEXPRESS:1433;databaseName=Test
spring.datasource.username=sa
spring.datasource.password=12345


# ===============================
# JPA / HIBERNATE
# ===============================

spring.jpa.show-sql=true
spring.jpa.hibernate.ddl-auto=none
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.SQLServer2012Dialect
application.properties (SQL Server + JTDS driver)
# ===============================
# DATABASE
# ===============================

spring.datasource.driver-class-name=net.sourceforge.jtds.jdbc.Driver
spring.datasource.url=jdbc:jtds:sqlserver://tran-vmware-pc:1433/Test;instance=SQLEXPRESS
spring.datasource.username=sa
spring.datasource.password=12345

# ===============================
# JPA / HIBERNATE
# ===============================

spring.jpa.show-sql=true
spring.jpa.hibernate.ddl-auto=none
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.SQLServerDialect
application.properties (Postgres)
# ===============================
# DATABASE CONNECTION
# ===============================

spring.datasource.driver-class-name=org.postgresql.Driver
spring.datasource.url=jdbc:postgresql://tran-vmware-pc:5432/Test
spring.datasource.username=postgres
spring.datasource.password=12345

# ===============================
# JPA / HIBERNATE
# ===============================

spring.jpa.show-sql=true
spring.jpa.hibernate.ddl-auto=none
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.PostgreSQLDialect


# Fix Postgres JPA Error:
# Method org.postgresql.jdbc.PgConnection.createClob() is not yet implemented.
spring.jpa.properties.hibernate.temp.use_jdbc_metadata_defaults=false

6. Configuration de sécurité & Remember Me

Cette application a certaines fonctions (pages), auxquelles :
  • /userInfo
Voici est une page d'affichage de l'information utilisateur. Cette page requiert l'utilisateur de se connecter et de jouer le rôle tel que ROLE_ADMIN ou ROLE_USER.
  • /admin
C'est une page d'administrateur. Elle exige des utilisateur de se connecter et seulement les personnes qui jouent le rôle ROLE_ADMIN peuvent y accéder.
  • /. /welcome, /login, /logout, /403
Les autres pages de l'application ne demandent pas de utilisateurs à se connecter.
La classe WebSecurityConfig sert à configurer la sécurité de l'application. Elle est annotée (annotate) par @Configuration. Cette annotation informe à Spring qu'elle est une classe de configuration et par conséquent, elle sera analysée par Spring dans le même temps où les applications exécutent.
WebSecurityConfig.java
package org.o7planning.sbsecurity.config;

import javax.sql.DataSource;

import org.o7planning.sbsecurity.service.UserDetailsServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.authentication.rememberme.JdbcTokenRepositoryImpl;
import org.springframework.security.web.authentication.rememberme.PersistentTokenRepository;

@Configuration
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

	@Autowired
	private UserDetailsServiceImpl userDetailsService;

	@Autowired
	private DataSource dataSource;

	@Bean
	public BCryptPasswordEncoder passwordEncoder() {
		BCryptPasswordEncoder bCryptPasswordEncoder = new BCryptPasswordEncoder();
		return bCryptPasswordEncoder;
	}

	@Autowired
	public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {

		// Setting Service to find User in the database.
		// And Setting PassswordEncoder
		auth.userDetailsService(userDetailsService).passwordEncoder(passwordEncoder());

	}

	@Override
	protected void configure(HttpSecurity http) throws Exception {

		http.csrf().disable();

		// The pages does not require login
		http.authorizeRequests().antMatchers("/", "/login", "/logout").permitAll();

		// /userInfo page requires login as ROLE_USER or ROLE_ADMIN.
		// If no login, it will redirect to /login page.
		http.authorizeRequests().antMatchers("/userInfo").access("hasAnyRole('ROLE_USER', 'ROLE_ADMIN')");

		// For ADMIN only.
		http.authorizeRequests().antMatchers("/admin").access("hasRole('ROLE_ADMIN')");

		// When the user has logged in as XX.
		// But access a page that requires role YY,
		// AccessDeniedException will be thrown.
		http.authorizeRequests().and().exceptionHandling().accessDeniedPage("/403");

		// Config for Login Form
		http.authorizeRequests().and().formLogin()//
				// Submit URL of login page.
				.loginProcessingUrl("/j_spring_security_check") // Submit URL
				.loginPage("/login")//
				.defaultSuccessUrl("/userAccountInfo")//
				.failureUrl("/login?error=true")//
				.usernameParameter("username")//
				.passwordParameter("password")
				// Config for Logout Page
				.and().logout().logoutUrl("/logout").logoutSuccessUrl("/logoutSuccessful");

		// Config Remember Me.
		http.authorizeRequests().and() //
				.rememberMe().tokenRepository(this.persistentTokenRepository()) //
				.tokenValiditySeconds(1 * 24 * 60 * 60); // 24h

	}

	@Bean
	public PersistentTokenRepository persistentTokenRepository() {
		JdbcTokenRepositoryImpl db = new JdbcTokenRepositoryImpl();
		db.setDataSource(dataSource);
		return db;
	}

}
Qu'est-ce que l'option "Remember Me"?
Un utilisateur accède un site web auquel il se connecte. Puis il éteint le navigateur et accède le site web dans un autre temps (par exemple, dans le jour suivant) et il doit se connecter une autre fois, celle-ci provoque un problème inutile. L'option "Remember Me" permet au site web à "se mémoriser" l'information de l'utilisateur pourque la connexion sera automatiquement exécutée dans les jours qui viennent.
Lorsque l'utilisateur se connecte une application par l'option "Remember Me", Spring enregistrera les informations de la dernière connexion et token. Token est une chaine (string) qui est cryptée (encryted), elle comprend des informations nécessaires pour que Spring se connecte automatiquement quand l'utilisateur se connecte pour la prochaine fois.

Spring a deux manières communes de stocker ces informations :
  • Memory
  • Database
** WebSecurityConfig **
// Token stored in Table (Persistent_Logins)
@Bean
public PersistentTokenRepository persistentTokenRepository() {
    JdbcTokenRepositoryImpl db = new JdbcTokenRepositoryImpl();
    db.setDataSource(this.dataSource);
    return db;
}
// Token stored in Memory (Of Web Server).
@Bean
public PersistentTokenRepository persistentTokenRepository() {
    InMemoryTokenRepositoryImpl memory = new InMemoryTokenRepositoryImpl();
    return memory;
}

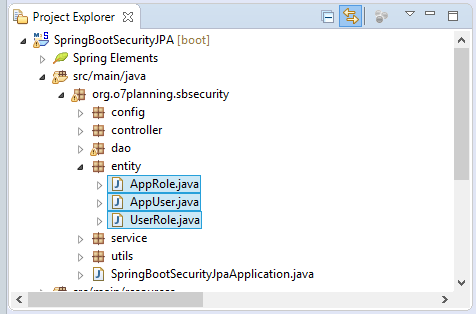

7. Des classes Entity

AppRole.java
package org.o7planning.sbsecurity.entity;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.Table;
import javax.persistence.UniqueConstraint;

@Entity
@Table(name = "App_Role", //
        uniqueConstraints = { //
                @UniqueConstraint(name = "APP_ROLE_UK", columnNames = "Role_Name") })
public class AppRole {

    @Id
    @GeneratedValue
    @Column(name = "Role_Id", nullable = false)
    private Long roleId;

    @Column(name = "Role_Name", length = 30, nullable = false)
    private String roleName;

    public Long getRoleId() {
        return roleId;
    }

    public void setRoleId(Long roleId) {
        this.roleId = roleId;
    }

    public String getRoleName() {
        return roleName;
    }

    public void setRoleName(String roleName) {
        this.roleName = roleName;
    }

}
AppUser.java
package org.o7planning.sbsecurity.entity;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.Table;
import javax.persistence.UniqueConstraint;

@Entity
@Table(name = "App_User", //
        uniqueConstraints = { //
                @UniqueConstraint(name = "APP_USER_UK", columnNames = "User_Name") })
public class AppUser {

    @Id
    @GeneratedValue
    @Column(name = "User_Id", nullable = false)
    private Long userId;

    @Column(name = "User_Name", length = 36, nullable = false)
    private String userName;

    @Column(name = "Encryted_Password", length = 128, nullable = false)
    private String encrytedPassword;

    @Column(name = "Enabled", length = 1, nullable = false)
    private boolean enabled;

    public Long getUserId() {
        return userId;
    }

    public void setUserId(Long userId) {
        this.userId = userId;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getEncrytedPassword() {
        return encrytedPassword;
    }

    public void setEncrytedPassword(String encrytedPassword) {
        this.encrytedPassword = encrytedPassword;
    }

    public boolean isEnabled() {
        return enabled;
    }

    public void setEnabled(boolean enabled) {
        this.enabled = enabled;
    }

}
UserRole.java
package org.o7planning.sbsecurity.entity;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.ManyToOne;
import javax.persistence.Table;
import javax.persistence.UniqueConstraint;

@Entity
@Table(name = "User_Role", //
        uniqueConstraints = { //
                @UniqueConstraint(name = "USER_ROLE_UK", columnNames = { "User_Id", "Role_Id" }) })
public class UserRole {

    @Id
    @GeneratedValue
    @Column(name = "Id", nullable = false)
    private Long id;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "User_Id", nullable = false)
    private AppUser appUser;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "Role_Id", nullable = false)
    private AppRole appRole;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public AppUser getAppUser() {
        return appUser;
    }

    public void setAppUser(AppUser appUser) {
        this.appUser = appUser;
    }

    public AppRole getAppRole() {
        return appRole;
    }

    public void setAppRole(AppRole appRole) {
        this.appRole = appRole;
    }

}

8. DAO, WebUtils

Des classes DAO (Data Access Object) sont celles utilisées pour accéder à une base de données, par exemple : Requêter (Query), Insérer (Insert), Mettre à jour (Update), Supprimer (Delete). Les classes DAO sont habituellement annotées par @Repository pour annoncer à Spring de les gérer comme des Spring BEAN.
La classe AppUserDAO sert à manipuler le tableau APP_USER. Elle a une méthode de recherche un utilisateur dans la base de données correspondant à un nom d'utilisateur.
AppUserDAO.java
package org.o7planning.sbsecurity.dao;

import javax.persistence.EntityManager;
import javax.persistence.NoResultException;
import javax.persistence.Query;

import org.o7planning.sbsecurity.entity.AppUser;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;
import org.springframework.transaction.annotation.Transactional;

@Repository
@Transactional
public class AppUserDAO {

    @Autowired
    private EntityManager entityManager;

    public AppUser findUserAccount(String userName) {
        try {
            String sql = "Select e from " + AppUser.class.getName() + " e " //
                    + " Where e.userName = :userName ";

            Query query = entityManager.createQuery(sql, AppUser.class);
            query.setParameter("userName", userName);

            return (AppUser) query.getSingleResult();
        } catch (NoResultException e) {
            return null;
        }
    }

}
AppRoleDAO.java
package org.o7planning.sbsecurity.dao;

import java.util.List;

import javax.persistence.EntityManager;
import javax.persistence.Query;

import org.o7planning.sbsecurity.entity.UserRole;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;
import org.springframework.transaction.annotation.Transactional;

@Repository
@Transactional
public class AppRoleDAO {

    @Autowired
    private EntityManager entityManager;

    public List<String> getRoleNames(Long userId) {
        String sql = "Select ur.appRole.roleName from " + UserRole.class.getName() + " ur " //
                + " where ur.appUser.userId = :userId ";

        Query query = this.entityManager.createQuery(sql, String.class);
        query.setParameter("userId", userId);
        return query.getResultList();
    }

}
-
WebUtils.java
package org.o7planning.sbsecurity.utils;

import java.util.Collection;

import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.User;

public class WebUtils {

    public static String toString(User user) {
        StringBuilder sb = new StringBuilder();

        sb.append("UserName:").append(user.getUsername());

        Collection<GrantedAuthority> authorities = user.getAuthorities();
        if (authorities != null && !authorities.isEmpty()) {
            sb.append(" (");
            boolean first = true;
            for (GrantedAuthority a : authorities) {
                if (first) {
                    sb.append(a.getAuthority());
                    first = false;
                } else {
                    sb.append(", ").append(a.getAuthority());
                }
            }
            sb.append(")");
        }
        return sb.toString();
    }

}
EncrytedPasswordUtils.java
package org.o7planning.sbsecurity.utils;

import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

public class EncrytedPasswordUtils {

    // Encryte Password with BCryptPasswordEncoder
    public static String encrytePassword(String password) {
        BCryptPasswordEncoder encoder = new BCryptPasswordEncoder();
        return encoder.encode(password);
    }

    public static void main(String[] args) {
        String password = "123";
        String encrytedPassword = encrytePassword(password);

        System.out.println("Encryted Password: " + encrytedPassword);
    }

}

9. UserDetailsService

UserDetailsService est une interface principale dans Spring Security. Elle est un service de recherche "Le compte d'utilisateur et ses rôles". Elle est utilisée par Spring Security chaque fois que l'utilisateur se connecte au système. Par conséquent, vous devez écrire une classe d'implément (implements) cette interface.
Ici, je crée la classe UserDetailsServiceImpl qui implémente (implements) l'interface UserDetailsService. La classe UserDetailsServiceImpl est annotée par @Service pour dire Spring de la gérer comme un Spring BEAN.
UserDetailsServiceImpl.java
package org.o7planning.sbsecurity.service;

import java.util.ArrayList;
import java.util.List;

import org.o7planning.sbsecurity.dao.AppUserDAO;
import org.o7planning.sbsecurity.entity.AppUser;
import org.o7planning.sbsecurity.dao.AppRoleDAO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
public class UserDetailsServiceImpl implements UserDetailsService {

    @Autowired
    private AppUserDAO appUserDAO;

    @Autowired
    private AppRoleDAO appRoleDAO;

    @Override
    public UserDetails loadUserByUsername(String userName) throws UsernameNotFoundException {
        AppUser appUser = this.appUserDAO.findUserAccount(userName);

        if (appUser == null) {
            System.out.println("User not found! " + userName);
            throw new UsernameNotFoundException("User " + userName + " was not found in the database");
        }

        System.out.println("Found User: " + appUser);

        // [ROLE_USER, ROLE_ADMIN,..]
        List<String> roleNames = this.appRoleDAO.getRoleNames(appUser.getUserId());

        List<GrantedAuthority> grantList = new ArrayList<GrantedAuthority>();
        if (roleNames != null) {
            for (String role : roleNames) {
                // ROLE_USER, ROLE_ADMIN,..
                GrantedAuthority authority = new SimpleGrantedAuthority(role);
                grantList.add(authority);
            }
        }

        UserDetails userDetails = (UserDetails) new User(appUser.getUserName(), //
                appUser.getEncrytedPassword(), grantList);

        return userDetails;
    }

}

10. Controllers

MainController.java
package org.o7planning.sbsecurity.controller;

import java.security.Principal;

import org.o7planning.sbsecurity.utils.WebUtils;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.userdetails.User;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class MainController {

	@RequestMapping(value = { "/", "/welcome" }, method = RequestMethod.GET)
	public String welcomePage(Model model) {
		model.addAttribute("title", "Welcome");
		model.addAttribute("message", "This is welcome page!");
		return "welcomePage";
	}

	@RequestMapping(value = "/admin", method = RequestMethod.GET)
	public String adminPage(Model model, Principal principal) {

		User loginedUser = (User) ((Authentication) principal).getPrincipal();

		String userInfo = WebUtils.toString(loginedUser);
		model.addAttribute("userInfo", userInfo);

		return "adminPage";
	}

	@RequestMapping(value = "/login", method = RequestMethod.GET)
	public String loginPage(Model model) {

		return "loginPage";
	}

	@RequestMapping(value = "/logoutSuccessful", method = RequestMethod.GET)
	public String logoutSuccessfulPage(Model model) {
		model.addAttribute("title", "Logout");
		return "logoutSuccessfulPage";
	}

	@RequestMapping(value = "/userInfo", method = RequestMethod.GET)
	public String userInfo(Model model, Principal principal) {

		// After user login successfully.
		String userName = principal.getName();

		System.out.println("User Name: " + userName);

		User loginedUser = (User) ((Authentication) principal).getPrincipal();

		String userInfo = WebUtils.toString(loginedUser);
		model.addAttribute("userInfo", userInfo);

		return "userInfoPage";
	}

	@RequestMapping(value = "/403", method = RequestMethod.GET)
	public String accessDenied(Model model, Principal principal) {

		if (principal != null) {
			User loginedUser = (User) ((Authentication) principal).getPrincipal();

			String userInfo = WebUtils.toString(loginedUser);

			model.addAttribute("userInfo", userInfo);

			String message = "Hi " + principal.getName() //
					+ "<br> You do not have permission to access this page!";
			model.addAttribute("message", message);

		}

		return "403Page";
	}

}

11. Thymeleaf Template

_menu.html est considéré comme une partie du site web. Il est immersé en autres sites pour créer le Menu de la page.
_menu.html
<div xmlns:th="http://www.thymeleaf.org"
     style="border: 1px solid #ccc;padding:5px;margin-bottom:20px;">

  <a th:href="@{/}">Home</a>

     | &nbsp;

   <a th:href="@{/userInfo}">User Info</a>

     | &nbsp;

   <a th:href="@{/admin}">Admin</a>

     | &nbsp;

   <a th:if="${#request.userPrincipal != null}" th:href="@{/logout}">Logout</a>

</div>
welcomePage.html
<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
   <head>
      <title th:utext="${title}"></title>
   </head>

   <body>

      <!-- Include _menu.html -->
      <th:block th:include="/_menu"></th:block>

      <h2>Message : <span th:utext="${message}"></span></h2>

   </body>
</html>
loginPage.html
<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
   <head>
      <title>Login</title>
   </head>
   <body>
      <!-- Include _menu.html -->
      <th:block th:include="/_menu"></th:block>

      <h1>Login</h1>

      <!-- /login?error=true -->
      <div th:if="${#request.getParameter('error') == 'true'}"
            style="color:red;margin:10px 0px;">
         Login Failed!!!<br />
         Reason :
         <span th:if="${#session!= null and #session.getAttribute('SPRING_SECURITY_LAST_EXCEPTION') != null}"
            th:utext="${#session.getAttribute('SPRING_SECURITY_LAST_EXCEPTION').message}">
                Static summary
         </span>

      </div>

      <h3>Enter user name and password:</h3>
      <form name='f' th:action="@{/j_spring_security_check}" method='POST'>
         <table>
            <tr>
               <td>User:</td>
               <td><input type='text' name='username' value=''></td>
            </tr>
            <tr>
               <td>Password:</td>
               <td><input type='password' name='password' /></td>
            </tr>
            <tr>
               <td>Remember Me?</td>
               <td><input type="checkbox" name="remember-me" /></td>
            </tr>
            <tr>
               <td><input name="submit" type="submit" value="submit" /></td>
            </tr>
         </table>
      </form>

      <br>
      Username/pass:
      <ul>
        <li>dbuser1/123</li>
        <li>dbadmin1/123</li>
      </ul>

   </body>

</html>
logoutSuccessfulPage.html
<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
   <head>
      <title>Logout</title>
   </head>

   <body>
      <!-- Include _menu.html -->
      <th:block th:include="/_menu"></th:block>

      <h1>Logout Successful!</h1>
   </body>

</html>
userInfoPage.html
<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
   <head>
      <title>User Info</title>
   </head>
   <body>
      <!-- Include _menu.html -->
      <th:block th:include="/_menu"></th:block>


      <h2>User Info Page</h2>
      <h3>Welcome : <span th:utext="${#request.userPrincipal.name}"></span></h3>
      <b>This is protected page!</b>

      <br/><br/>

      <div th:if="${userInfo != null}" th:utext="${userInfo}"></div>

   </body>

</html>
adminPage.html
<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
   <head>
      <title th:utext="${title}"></title>
   </head>
   <body>
      <!-- Include _menu.html -->
      <th:block th:include="/_menu"></th:block>

      <h2>Admin Page</h2>
      <h3>Welcome :
         <span th:utext="${#request.userPrincipal.name}"></span>
      </h3>
      <b>This is protected page!</b>

      <br/><br/>

      <div th:if="${userInfo != null}" th:utext="${userInfo}"></div>

   </body>

</html>
Si des utilisateurs se connectent au système, mais accèdent un site non autorisé (n'appartient pas à leur rôles), le système affichera le contenu de la page /403 pour informer que l'accès est refusé (Access Denied).
403Page.html
<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
<title>Access Denied</title>
</head>

<body>
    <!-- Include _menu.html -->
    <th:block th:include="/_menu"></th:block>

    <h3 th:if="${message != null}" th:utext="${message}" style="color: red;"></h3>

    <div th:if="${userInfo != null}" th:utext="${userInfo}"></div>

</body>

</html>

12. Exécuter l'application

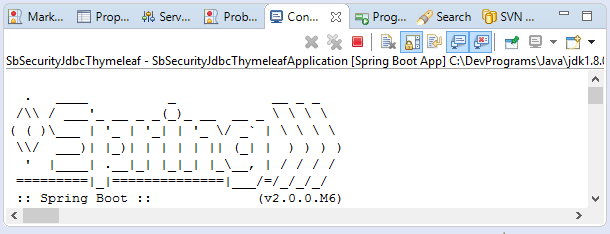

Cliquez sur le bouton droit du projet, sélectionnez :
  • Run As/Spring Boot App
Accédez à l'addresse :
Connez -vous avec le rôle de ROLE_USER :
Connez -vous avec le rôle de ROLE_ADMIN:
Testez la fonction "Remember Me".
Voyez les données dans le tableau PERSISTENT_LOGINS:

Tutoriels Spring Boot

Show More
