Le Tutoriel de Java XStream

  1. Qu'est- ce que XStream?
  2. La bibliothèque XStream
  3. Créer rapidement un projet pour travailler avec XStream
  4. Quelques classes ont participé dans les exemples
  5. La conversion de l'objet Java en XML
  6. L'utilisation Alias (Pseudo)
    1. La pseudo- classe
    2. Le pseudo- champ (field)
    3. La pseudo- collection implicite
    4. Le pseudo- attribut
    5. Le pseudo- package
  7. XStream Annotation
  8. XStream Converter

1- Qu'est- ce que XStream?

XStream est une simple bibliothèque Java, qui propose à sérialiser d'objets Java XML et vice-versa.

2- La bibliothèque XStream

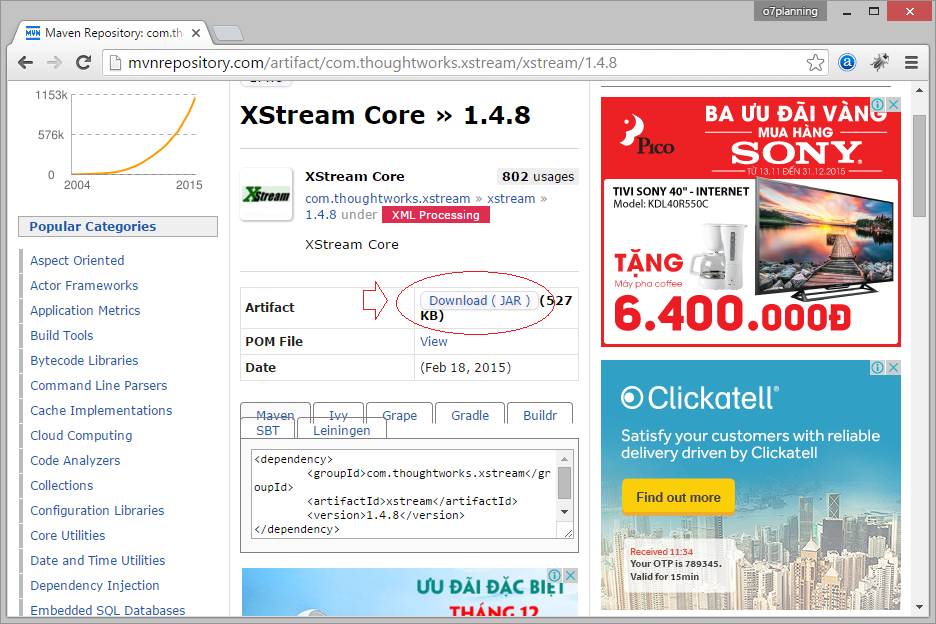

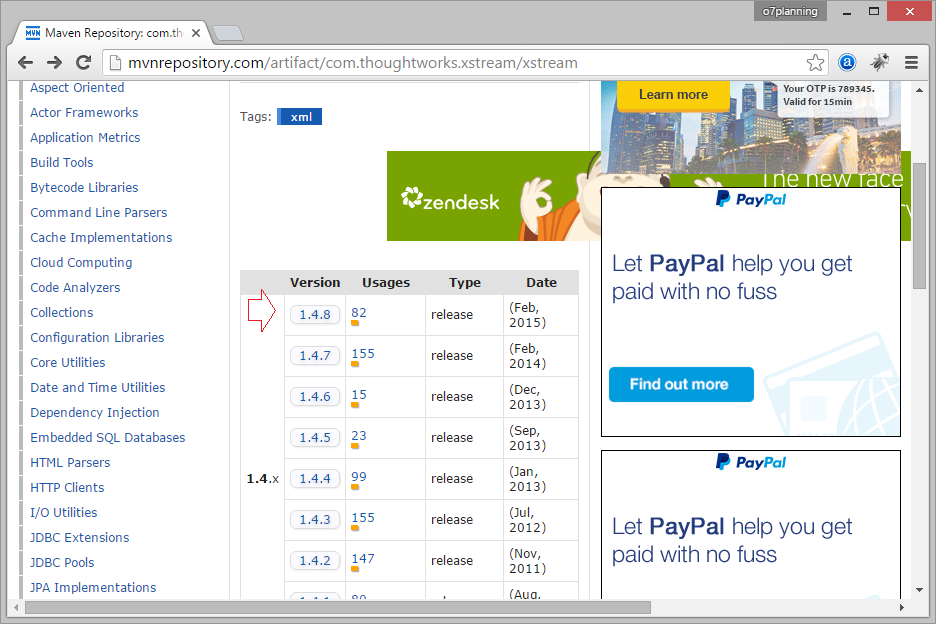

Vous pouvez télécharger la bibliothèque XStream ici:
Ou déclarez l'utilisation de la bibliothèque XStream avec Maven:
<!-- http://mvnrepository.com/artifact/com.thoughtworks.xstream/xstream -->
<dependency>
    <groupId>com.thoughtworks.xstream</groupId>
    <artifactId>xstream</artifactId>
    <version>1.4.8</version>
</dependency>

3- Créer rapidement un projet pour travailler avec XStream

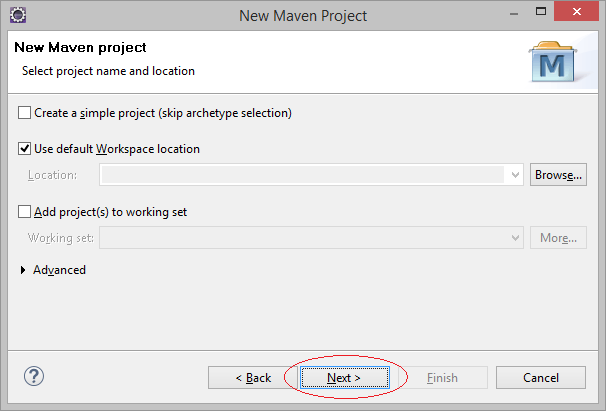

Maintenant je vais créer rapidement un projet Maven.

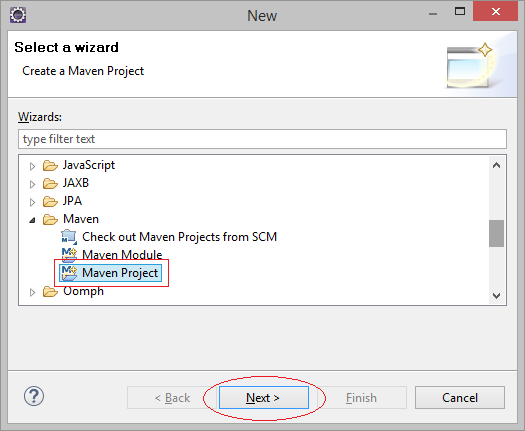

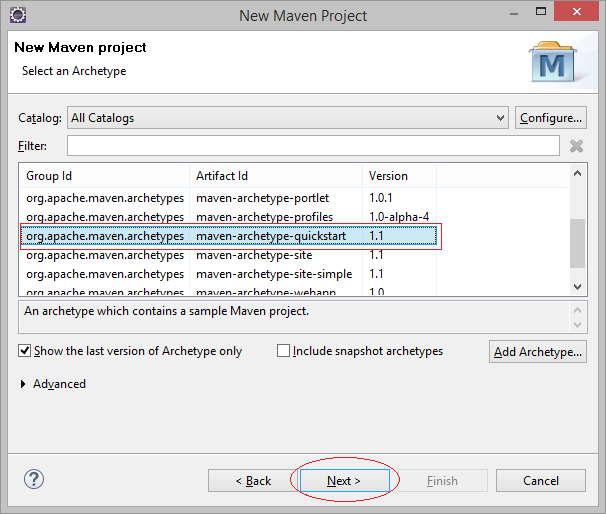

  • File/New/Other..

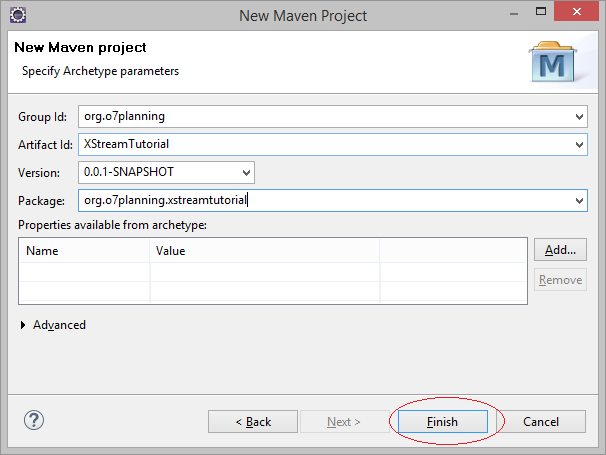

Saisissez:
  • Group Id: org.o7planning
  • Artifact Id: XStreamTutorial
  • Package: org.o7planning.xstreamtutorial
Déclarez la bibliothèque XStream avec Maven.
pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/xsd/maven-4.0.0.xsd">

   <modelVersion>4.0.0</modelVersion>

   <groupId>org.o7planning</groupId>
   <artifactId>XStreamTutorial</artifactId>
   <version>0.0.1-SNAPSHOT</version>
   <packaging>jar</packaging>

   <name>XStreamTutorial</name>
   <url>http://maven.apache.org</url>

   <properties>
       <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
   </properties>

   <dependencies>

       <dependency>
           <groupId>junit</groupId>
           <artifactId>junit</artifactId>
           <version>3.8.1</version>
           <scope>test</scope>
       </dependency>

       <!-- http://mvnrepository.com/artifact/com.thoughtworks.xstream/xstream -->
       <dependency>
           <groupId>com.thoughtworks.xstream</groupId>
           <artifactId>xstream</artifactId>
           <version>1.4.8</version>
       </dependency>

   </dependencies>

</project>

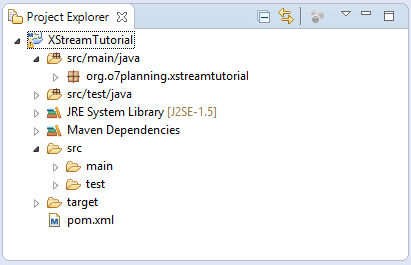

4- Quelques classes ont participé dans les exemples

Address.java
package org.o7planning.xstreamtutorial.beans;

public class Address {

   private String street;
   private String city;

   public Address() {

   }

   public Address(String street, String city) {
       this.street = street;
       this.city = city;
   }

   public String getStreet() {
       return street;
   }

   public void setStreet(String street) {
       this.street = street;
   }

   public String getCity() {
       return city;
   }

   public void setCity(String city) {
       this.city = city;
   }

   @Override
   public String toString() {
       return street + ", " + city;
   }

}
Company.java
package org.o7planning.xstreamtutorial.beans;

public class Company {

   private int id;
   private String name;
   private String[] websites;
   private Address address;

   public int getId() {
       return id;
   }

   public void setId(int id) {
       this.id = id;
   }

   public String getName() {
       return name;
   }

   public void setName(String name) {
       this.name = name;
   }

   public String[] getWebsites() {
       return websites;
   }

   public void setWebsites(String[] websites) {
       this.websites = websites;
   }

   public Address getAddress() {
       return address;
   }

   public void setAddress(Address address) {
       this.address = address;
   }

   @Override
   public String toString() {
       StringBuilder sb = new StringBuilder();

       sb.append("\n id:" + this.id);
       sb.append("\n name:" + this.name);
       if (this.websites != null) {
           sb.append("\n website: ");
           for (String website : this.websites) {
               sb.append(website + ", ");
           }
       }
       if (this.address != null) {
           sb.append("\n address:" + this.address.toString());
       }
       return sb.toString();
   }

}
DataDAO.java
package org.o7planning.xstreamtutorial;

import org.o7planning.xstreamtutorial.beans.Address;
import org.o7planning.xstreamtutorial.beans.Company;

public class DataDAO {



   public static Company createCompany() {

       Company company = new Company();
       company.setId(111);
       company.setName("Microsoft");

       String[] websites = { "http://microsoft.com",
               "http://msn.com", "http://hotmail.com" };
       company.setWebsites(websites);

       Address address = new Address();
       address.setCity("Redmond");
       address.setStreet("1 Microsoft Way");

       company.setAddress(address);

       return company;
   }

}

5- La conversion de l'objet Java en XML

Contrairement à JAXB, XStream peut convertir un objet Java sous forme de fichiers XML. Il n'est pas nécessaire de de créer la cartographie (pas de mapping). XStream fournit mappage par défaut. Observez l'exemple ci-dessous:
JavaObject2Xml.java
package org.o7planning.xstreamtutorial;

import org.o7planning.xstreamtutorial.beans.Company;

import com.thoughtworks.xstream.XStream;

public class JavaObject2Xml {

   public static void main(String[] args) {

       Company company = DataDAO.createCompany();

       XStream xs = new XStream();


       // JAVA OBJECT --> XML
       String xml = xs.toXML(company);

       System.out.println(xml);
   }


}
Exécutez l'exemple:
<org.o7planning.xstreamtutorial.beans.Company>
  <id>111</id>
  <name>Microsoft</name>
  <websites>
    <string>http://microsoft.com</string>
    <string>http://msn.com</string>
    <string>http://hotmail.com</string>
  </websites>
  <address>
    <street>1 Microsoft Way</street>
    <city>Redmond</city>
  </address>
</org.o7planning.xstreamtutorial.beans.Company>

6- L'utilisation Alias (Pseudo)

Quand convertissant Java en XML, par défaut XStream convertit le nom de la classe en le nom du tag XML. Aliasing est une technique permettant de personnaliser le code XML généré. Ci-dessous mentionnées sont 5 types d'aliasing:
  1. Classe Aliasing (class)
  2. Champ Aliasing (field)
  3. Collections implicitées Aliasing
  4. Attribut Aliasing
  5. Package Aliasing

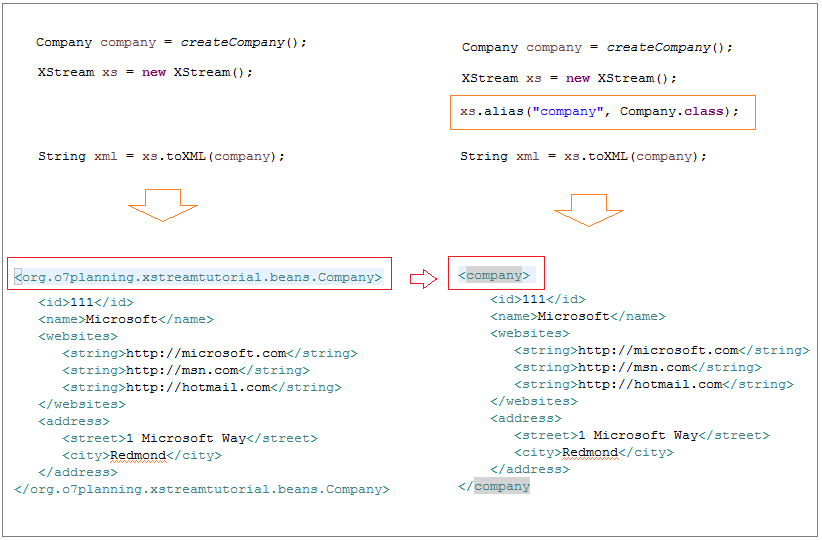

6.1- La pseudo- classe

ClassAliasingExample.java
package org.o7planning.xstreamtutorial;

import org.o7planning.xstreamtutorial.beans.Company;

import com.thoughtworks.xstream.XStream;

public class ClassAliasingExample {

   public static void main(String[] args) {

       Company company = DataDAO.createCompany();

       XStream xs = new XStream();

       xs.alias("company", Company.class);

       // JAVA OBJECT --> XML
       String xml = xs.toXML(company);

       System.out.println(xml);
   }

}
Exécutez l'exemple:
<company>
 <id>111</id>
 <name>Microsoft</name>
 <websites>
   <string>http://microsoft.com</string>
   <string>http://msn.com</string>
   <string>http://hotmail.com</string>
 </websites>
 <address>
   <street>1 Microsoft Way</street>
   <city>Redmond</city>
 </address>
</company

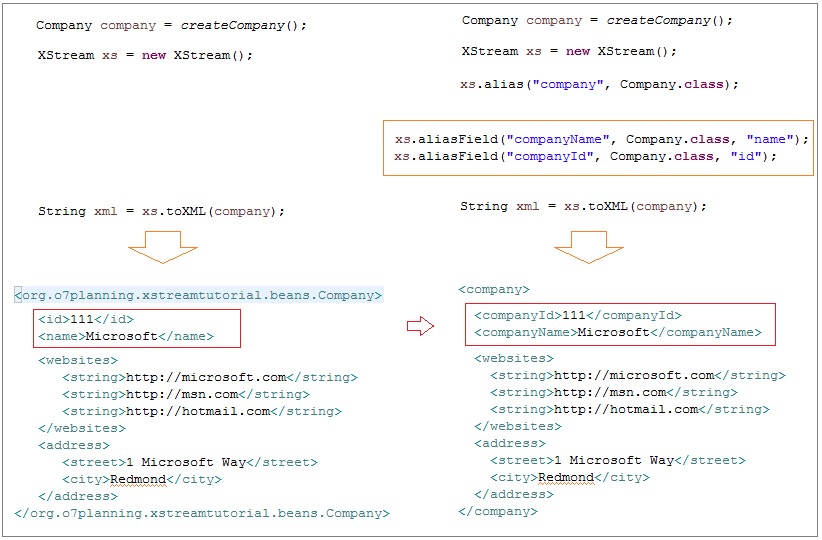

6.2- Le pseudo- champ (field)

FieldAliasingExample.java
package org.o7planning.xstreamtutorial;

import org.o7planning.xstreamtutorial.beans.Company;

import com.thoughtworks.xstream.XStream;

public class FieldAliasingExample {

   public static void main(String[] args) {

       Company company = DataDAO.createCompany();

       XStream xstream = new XStream();

       // Class aliasing.
       xstream.alias("company", Company.class);

       // Field aliasing.
       // aliasField(String alias, Class definedIn, String fieldName).
       xstream.aliasField("companyName", Company.class, "name");
       xstream.aliasField("companyId", Company.class, "id");

       // JAVA OBJECT --> XML
       String xml = xstream.toXML(company);

       System.out.println(xml);
   }

}
Exécutez l'exemple:
<company>
  <companyId>111</companyId>
  <companyName>Microsoft</companyName>
  <websites>
    <string>http://microsoft.com</string>
    <string>http://msn.com</string>
    <string>http://hotmail.com</string>
  </websites>
  <address>
    <street>1 Microsoft Way</street>
    <city>Redmond</city>
  </address>
</company>

6.3- La pseudo- collection implicite

Normalement, une collection (Array/Collections) dans Java quand elle est convertie en XML, elle est enveloppée dans un tag. Vous pouvez utiliser les collections implicitées Aliasing pour élimiter ce tag.
ImplicitCollectionsAliasingExample.java
package org.o7planning.xstreamtutorial;

import org.o7planning.xstreamtutorial.beans.Company;

import com.thoughtworks.xstream.XStream;

public class ImplicitCollectionsAliasingExample {

   public static void main(String[] args) {

       Company company = DataDAO.createCompany();

       XStream xstream = new XStream();

       // Class aliasing.
       xstream.alias("company", Company.class);


       // addImplicitArray(Class ownerType, String fieldName).
       xstream.addImplicitArray(Company.class, "websites", "website");

       // JAVA OBJECT --> XML
       String xml = xstream.toXML(company);

       System.out.println(xml);

   }

}
Exécutez l'exemple:
<company>
  <id>111</id>
  <name>Microsoft</name>
  <website>http://microsoft.com</website>
  <website>http://msn.com</website>
  <website>http://hotmail.com</website>
  <address>
    <street>1 Microsoft Way</street>
    <city>Redmond</city>
  </address>
</company>

6.4- Le pseudo- attribut

AttributeAliasingExample.java
package org.o7planning.xstreamtutorial;

import org.o7planning.xstreamtutorial.beans.Company;

import com.thoughtworks.xstream.XStream;

public class AttributeAliasingExample {

   public static void main(String[] args) {

       Company company = DataDAO.createCompany();

       XStream xstream = new XStream();

       // Class aliasing.
       xstream.alias("company", Company.class);


       // useAttributeFor(Class definedIn, String fieldName).
       xstream.useAttributeFor(Company.class, "id");

       xstream.useAttributeFor(Company.class, "name");
       xstream.aliasAttribute("companyName", "name");

       // JAVA OBJECT --> XML
       String xml = xstream.toXML(company);

       System.out.println(xml);

   }

}
L'exécution de l'exemple:
<company id="111" companyName="Microsoft">
  <websites>
    <string>http://microsoft.com</string>
    <string>http://msn.com</string>
    <string>http://hotmail.com</string>
  </websites>
  <address>
    <street>1 Microsoft Way</street>
    <city>Redmond</city>
  </address>
</company>

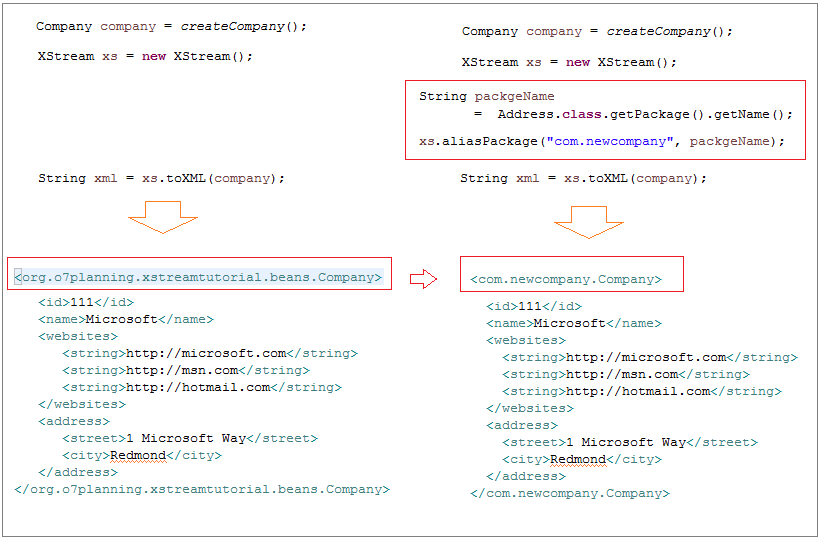

6.5- Le pseudo- package

PackageAliasingExample.java
package org.o7planning.xstreamtutorial;

import org.o7planning.xstreamtutorial.beans.Address;
import org.o7planning.xstreamtutorial.beans.Company;

import com.thoughtworks.xstream.XStream;

public class PackageAliasingExample {

    public static void main(String[] args) {

        Company company = DataDAO.createCompany();

        XStream xstream = new XStream();

        String packgeName=  Address.class.getPackage().getName();

        // aliasPackage(String name, String pkgName).
        xstream.aliasPackage("com.newcompany", packgeName);



        // JAVA OBJECT --> XML
        String xml = xstream.toXML(company);

        System.out.println(xml);

    }

}
L'exécution de l'exemple:
<com.newcompany.Company>
  <id>111</id>
  <name>Microsoft</name>
  <websites>
    <string>http://microsoft.com</string>
    <string>http://msn.com</string>
    <string>http://hotmail.com</string>
  </websites>
  <address>
    <street>1 Microsoft Way</street>
    <city>Redmond</city>
  </address>
</com.newcompany.Company>

7- XStream Annotation

Avec XStream vous pouvez utiliser le code pour personnaliser XML généré des objets de Java, en utilisant  Alias est mentionné ci-dessus. Mais vous pouvez également utiliser Annotation pour dire avec XStream la manière de générer XML à partir des objets de Java.

Ci- dessous mentionnées sont la liste d' Annotation:
  • @XStreamAlias
  • @XStreamAsAttribute
  • @XStreamImplicit
  • @XStreamOmitField
Using Code Using Annotation
xs.alias("dept", Department.class); @XStreamAlias("dept")
public class Department {

}
xs.aliasField("no", Department.class, "deptNo"); @XStreamAlias("no")
private int deptNo;
xs.useAttributeFor(Department.class, "deptNo") @XStreamAsAttribute
private int deptNo;
xs.omitField(Employee.class, "bonus"); @XStreamOmitField
private float bonus;
xs.addImplicitCollection(Department.class, "employees"); @XStreamImplicit
private List<Employee> employees;
Department.java
package org.o7planning.xstreamtutorial.beans;

import java.util.List;

import com.thoughtworks.xstream.annotations.XStreamAlias;
import com.thoughtworks.xstream.annotations.XStreamAsAttribute;
import com.thoughtworks.xstream.annotations.XStreamImplicit;

@XStreamAlias("dept")
public class Department {

  @XStreamAlias("no")
  @XStreamAsAttribute
  private int deptNo;

  @XStreamAlias("name")
  private String deptName;

  @XStreamImplicit
  private List<Employee> employees;

  public int getDeptNo() {
      return deptNo;
  }

  public void setDeptNo(int deptNo) {
      this.deptNo = deptNo;
  }

  public String getDeptName() {
      return deptName;
  }

  public void setDeptName(String deptName) {
      this.deptName = deptName;
  }

  public List<Employee> getEmployees() {
      return employees;
  }

  public void setEmployees(List<Employee> employees) {
      this.employees = employees;
  }

}
Employee.java
package org.o7planning.xstreamtutorial.beans;

import com.thoughtworks.xstream.annotations.XStreamAlias;
import com.thoughtworks.xstream.annotations.XStreamAsAttribute;
import com.thoughtworks.xstream.annotations.XStreamOmitField;

@XStreamAlias("emp")
public class Employee {

    @XStreamAlias("no")
    @XStreamAsAttribute
    private int empNo;
    private String empName;

    private float salary;

    // Ignore this field.
    @XStreamOmitField
    private float bonus;

    public Employee(int empNo, String empName, float salary) {
        this.empNo = empNo;
        this.empName = empName;
        this.salary = salary;
    }

    public int getEmpNo() {
        return empNo;
    }

    public void setEmpNo(int empNo) {
        this.empNo = empNo;
    }

    public String getEmpName() {
        return empName;
    }

    public void setEmpName(String empName) {
        this.empName = empName;
    }

    public float getSalary() {
        return salary;
    }

    public void setSalary(float salary) {
        this.salary = salary;
    }

    public float getBonus() {
        return bonus;
    }

    public void setBonus(float bonus) {
        this.bonus = bonus;
    }

}
XStreamAnnotationExample.java
package org.o7planning.xstreamtutorial;

import java.util.ArrayList;
import java.util.List;

import org.o7planning.xstreamtutorial.beans.Department;
import org.o7planning.xstreamtutorial.beans.Employee;

import com.thoughtworks.xstream.XStream;

public class XStreamAnnotationExample {

    public static void main(String[] args) {
        Department dept = createDepartment();

        XStream xstream = new XStream();

        // Using annotations in class Department
        xstream.processAnnotations(Department.class);

        // Using annotations in class Employee
        xstream.processAnnotations(Employee.class);

        String xml = xstream.toXML(dept);

        System.out.println(xml);
    }

    public static Department createDepartment() {
        Department dept = new Department();
        dept.setDeptNo(10);
        dept.setDeptName("ACCOUNTING");

        Employee king = new Employee(7839, "KING", 5000f);
        Employee clark = new Employee(7839, "CLARK", 2450f);
        Employee miller = new Employee(7839, "MILLER", 1300f);

        List<Employee> list = new ArrayList<Employee>();
        list.add(king);
        list.add(clark);
        list.add(miller);
        dept.setEmployees(list);
        return dept;
    }

}
L'exécution de l'exemple:
<dept no="10">
  <name>ACCOUNTING</name>
  <emp no="7839">
    <empName>KING</empName>
    <salary>5000.0</salary>
  </emp>
  <emp no="7839">
    <empName>CLARK</empName>
    <salary>2450.0</salary>
  </emp>
  <emp no="7839">
    <empName>MILLER</empName>
    <salary>1300.0</salary>
  </emp>
</dept>

8- XStream Converter

XStream Converter est l' élément clé de la bibliothèque XStream, c'est API qui est responsable de convertir un objet en XML et vice versa. Vous pouvez créer par vous- même un convertisseurs XStream pour convertir entre Java et XML:

  • TODO
